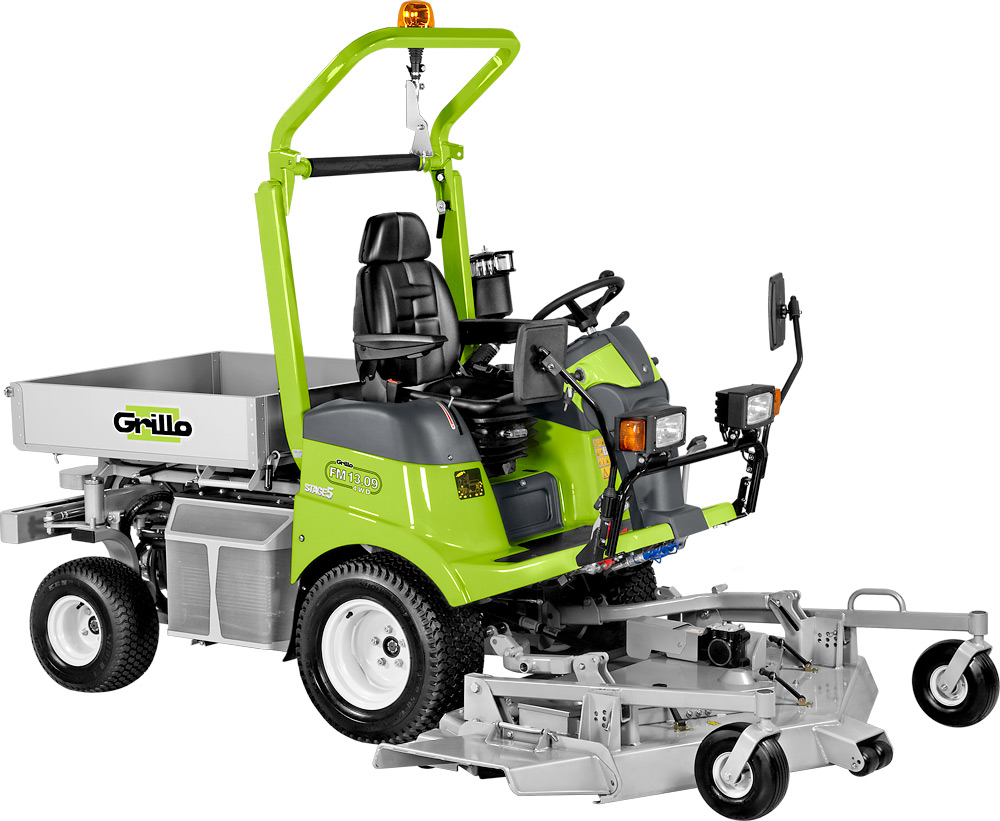

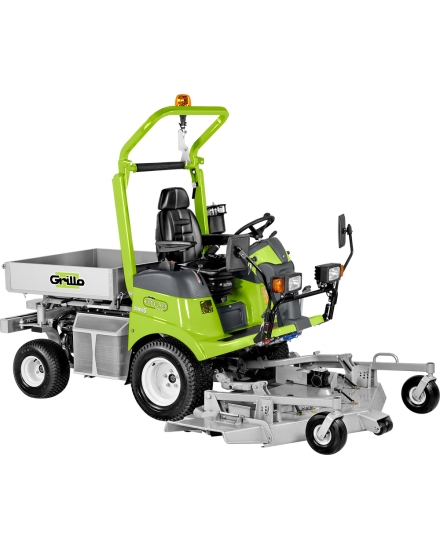

The Grillo FM 13.09 has the MP 130, LMP 160 3-blade with side discharge – mulching – rear discharge, the 130 cm and 160 cm mulchers and 150 cm snow blade. It is also equipped with 2 electrically operated hydraulic services for handling accessories, with a capacity of up to 18 l/1' at 120 bar. It uses 1/4" front-mounted quick couplings.
The 130 MP cutter deck with 3 blades and a cutting width of 130 cm is equipped with a rear discharge function and mulching cut. Switching between the two cutting modes, and also adjusting the cutting height, is done via elector-hydraulic push-button controls directly from the driver's seat.
The FM 13.09 has a steel caisson with aluminum sides, size 105×105 cm, which, once raised by means of a gas spring, provides easy access to the engine compartment cover.
It is also equipped with a self-cleaning radiator, with an electric fan that reverses the direction of rotation to eliminate any grass clippings on the radiator: this system is automatic and regulated by a sensor, but can also be activated manually.
The PTO clutch is hydraulic multi-plate with built-in blade brake and electrically actuated via a push button.
It guarantees high torque transmission with low usage and consequently long service life.
The ferrule-type blade brake is adjustable so that its efficiency can be maintained over time, recovering the wear and tear of the friction material. In addition, because of the arms used by Grillo, tipping and maintenance of the plates and replacement of accessories are easy.
The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo FM 13.09 4WD is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the FM 13.09 4WD includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.
Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.
| Standard features | Twin-hydraulic takes-off (max. pressure 120 bar, max. capacity 34L/1’ at 2400 rpm). Lights and indicator kit |
| Engine |
Yanmar 3TNV82A Stage5 Start elettrico con batteria 12v Supply diesel 1331 cc, 3 Cylinders 26.0 HP, 18.9 KW Raffreddato a liquido Filtro aria a secco con cartucce intercambiabili, cartuccia di sicurezza e prefiltro |
| Fuel tank capacity | 23 L |
| Hydraulic oil tank | 20 L |
| Traction | Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius) |
| Gearbox | Hydrostatic transmission with 4 hydraulic engines on the 4 wheels |
| Clutch | Clutch: electromagnetic for PTO with magnetic blade brake |
| Differential locking | Automatic differential lock and manual with push button |
| Cutter deck | with rear and side discharge / mulching |
| Cutting deck width | 160 cm |
| Cutting height | from 2 to 10 cm |
| Load bed | Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened |
| Front tyres | 23x10.50-12 TURF WHEELS |
| Rear tyres | 18x8.50-8 TURF WHEELS |
| Steering system | Hydraulic drive with steering wheel |
| Speed | From 0 to 15 km/h continuously variable |
| Inner turning radius | 31 cm |
| Seat | Super comfort and adjustable sprung seat with arm-rests. |
| Service brake | Drum brake |
| Parking brake | Drum brake |
| Mowing capacity per hour (indicative) | 12000 m²/h |
| Length | 325 cm |
| Width | 192 cm |
| Height | 175 cm |
| Clear span from the ground | 15 cm |
| Weight | 1102 kg (with 160 LMP cutting deck) |
