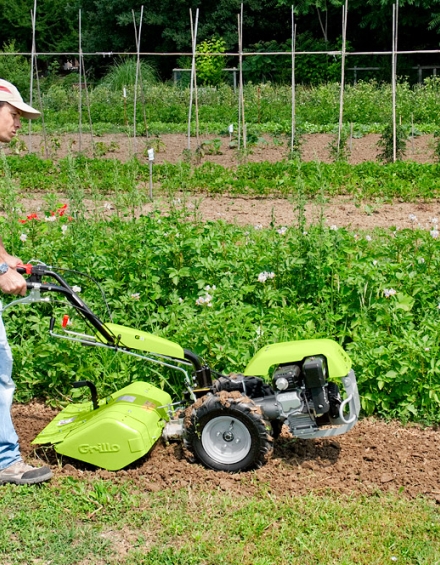

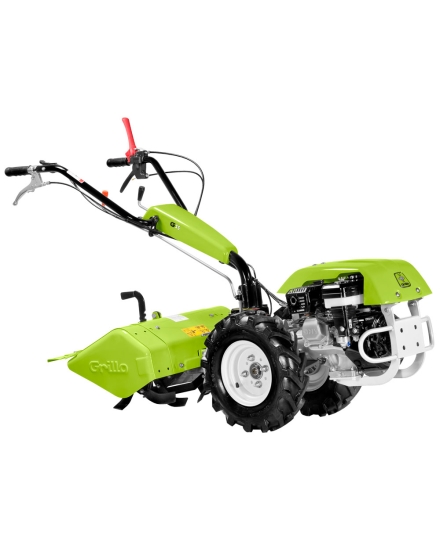

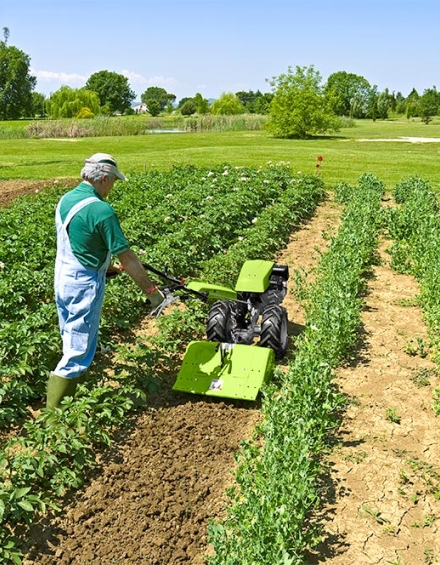

The Grillo G55 is an appropriate walking tractor for all kind of works on medium-sized areas.
It is fitted with a 4 speed-gearbox with gears in oil-bath, with 2 forward and 2 reverse gears.

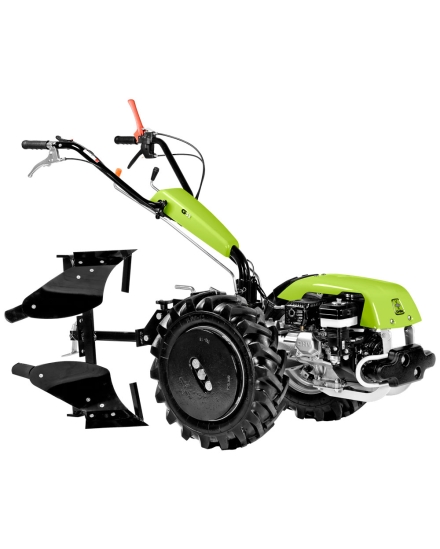

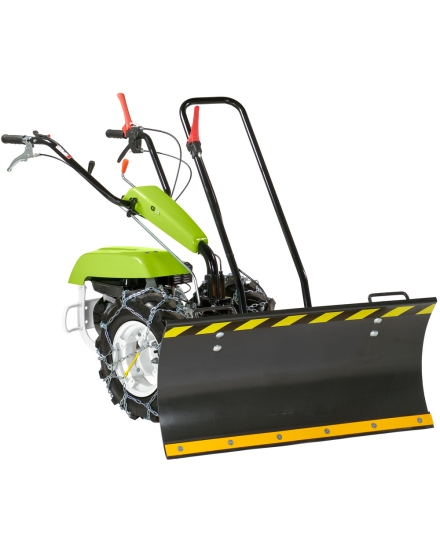

G55 is an easily manoeuvrable and safe machine and offers the possibility to attach several front and rear-mounted attachments. Its handlebar can be reversed through 180° via a lever. The attachments can be connected through a coupling without the need to use tools. There is also the possibility to attach a plough kit containing large wheels, adjustable extensions, 180° turn-wrest plough and wheel weights.
It is possible to achieve a greater stability on slopes by widening the wheel track by 12 or 24 cm by means of the appropriate Grillo wheel extensions.
| Standard features | Attachments quick coupling having 50 mm diameter |
| Safety devices | Active conic clutch |
| Engine |
Loncin G200FA Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio Honda GX200 OHV Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 3,6 L eng. 3000 OHC - 3,1 L eng. GX200 OHC |
| Transmission | with oil bath gears |

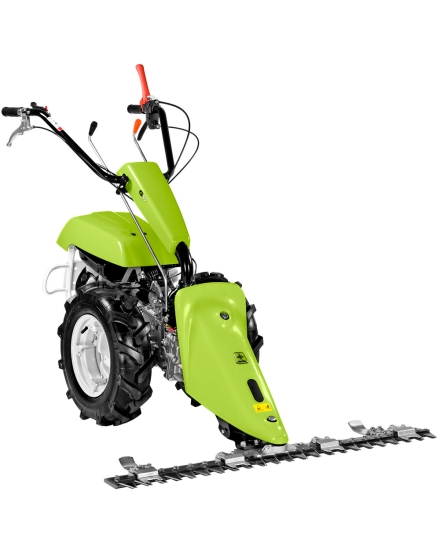

| Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears |
| Reverse gear unit | by lever |
| Clutch | conic active |
| Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 58 cm |
| Hoes system diametre | 26 cm |
| Working width | Adjustable at 58 and 50 cm |
| Working depth | 13 cm |
| P.T.O. | 965 rpm regardless of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. |
| Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 16x6.50-8 (fixed disks), 5.00-10 (adjustable disks) |
| Speed | With 4.00-8 wheels 1st gear 1,1 km/h, 2nd gear 2,6 km/h |
| Handlebar | height and side adjustment. Fitted on anti-vibration blocks |
| Weight | Standard version: 86 kg |
