The Grillo G84 is an ideal walking tractor for works in horticulture, orchards, vegetable plots and in gardening. It is a robust machine ideal to work on any kind of soil.
G84 is fitted with a 4 speed-gearbox in oil-bath, with 2 forward and 2 reverse gears.

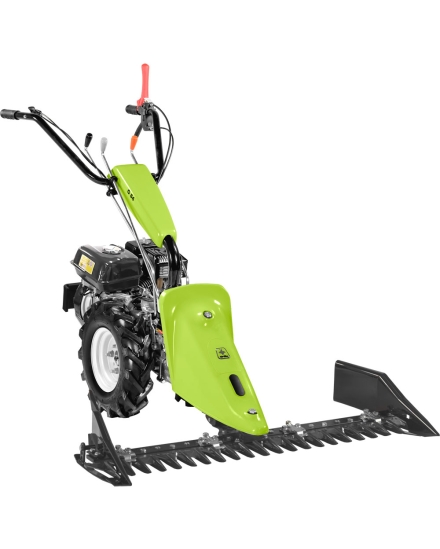

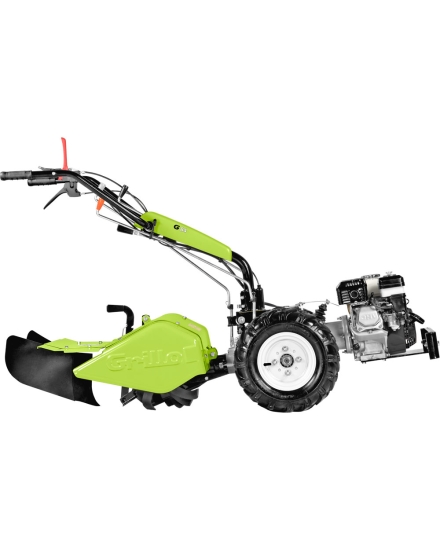

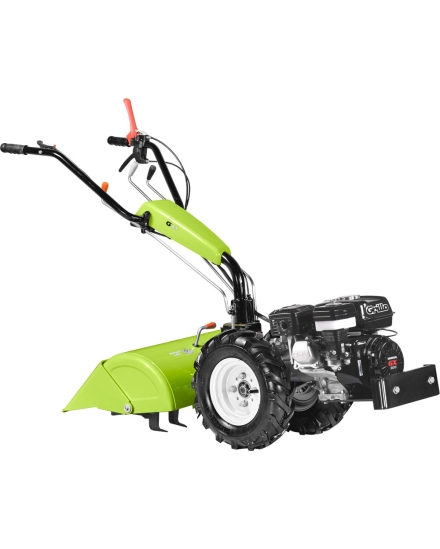

Several front and rear-mounted implements can be applied to this machine, due to its 180° reversible handlebar, such as standard rotary tiller, counter – rotating tiller, sickle bars and furrow behind the rotary tiller.
These attachments can be connected to the machine through a solid flanged coupling.
| Safety devices | Active clutch, reverse speed – PTO cut-out |
| Engine |
Honda GX200 OHV Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 3,1 L |
| Transmission | With oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears |
| Reverse gear unit | By lever |
| Clutch | Conic active |
| Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 580 mm |
| Hoes system diametre | 32 cm |
| Working width | Adjustable at 370 and 470 mm (680 mm with extensions) |
| Working depth | 16 cm |
| P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. |
| Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.0 |
| Service brake | Brake drum (kit upon request cod. 978111) |
| Handlebar | Height and side adjustment. Fitted on anti-vibration blocks |
| External sizes of the wheels | 42 or 37 cm with 4.00-8 wheels |
| Weight | with tiller, 111 kg |
