Princess MP3

The satisfaction of working with a rotary tiller that is second to none!

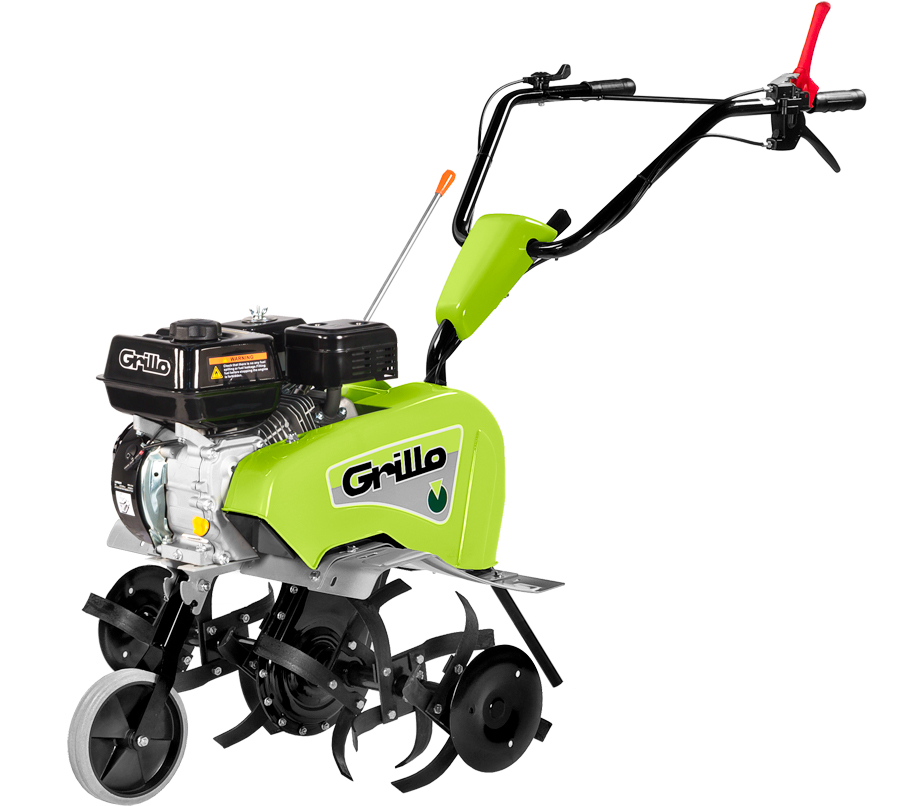

Princess MP3

Princess tillers are reliable, safe and well balanced.
The Grillo Princess MP3, together with the Princess M1 and MR, forms a series of tillers that differ in their transmission.
The Princess MP3 has two forward gears and reverse.

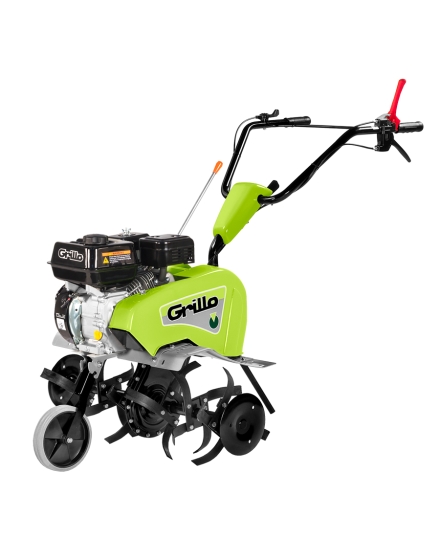

The 83 cm wide tiller has a tines diameter of 32 cm and consists of 6 stars of tines and side discs. It is possible to remove two or four tiller stars to obtain smaller tilling widths.

The Grillo Princess MP3 is equipped with an active coupling; the advance lever on the handlebar, when pressed, starts the rotation of the tines. When the lever is released, the tines stop immediately and the engine remains running. Maximum practicality and safety.

The two-speed plus reverse gearbox is mechanical with oil-bath gears and the gear lever is always within reach.

The Grillo Princess is available with the Loncin G200FA petrol engine. It is a latest-generation engine with the best features for agricultural use, including excellent torque at low revs. Sturdy and reliable, it is equipped with a system that reduces the force required for starting.

The tines made of hardened steel are secured by bolts. The tiller is securely clamped on the tiller axle with M10 bolts.
The tiller transmission casing is bolted on for maintenance purposes.

The height-adjustable spur can be fixed or oscillating and makes work easy while keeping the machine balanced. In addition, in the oscillating position it acts as a rudder for working around plants.

Two spurs are supplied as standard: one for soft soil and one for hard soil.
The adjustment of the spur determines the working depth.
When the spur is set low, the tines sink deeper into the ground.
With the spur set high, the center of gravity shifts forward and the machine tends to advance more quickly.
Using the side discs and high spur increases flotation and forward movement.

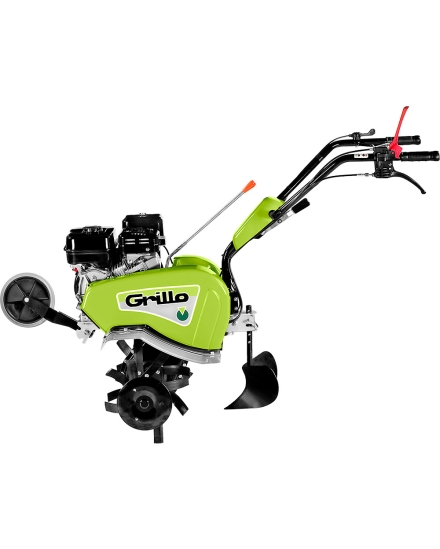

The furrower replaces the spur and allows perfect furrows of the desired depth to be made for seeding or irrigation.

Side discs should not be used when tilling hard soil that has never been tilled.
In softer soils, side discs become very useful: they help maintain direction, advance and protect nearby crops from tilling.

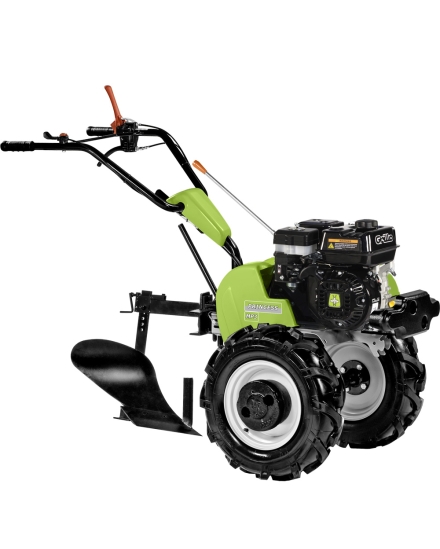

The Grillo Princess MP3 can plough by fitting the optional ploughing kit consisting of a plough, wheels and ballast.

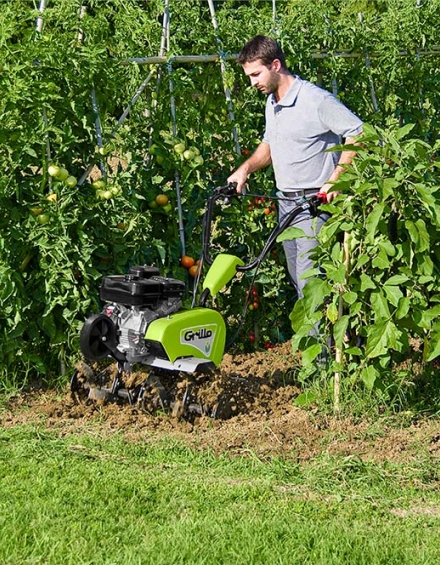

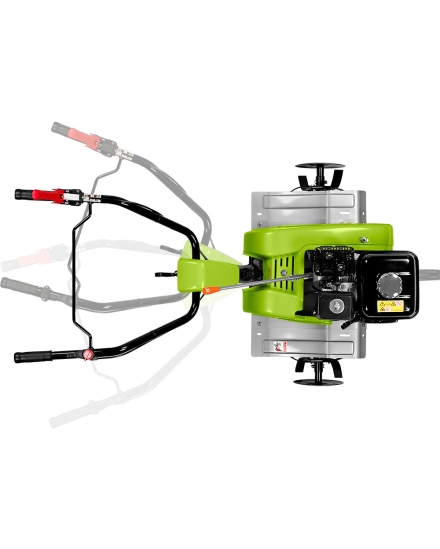

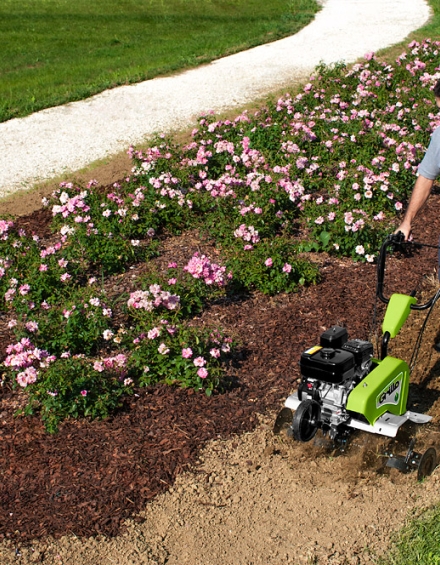

The handlebar is adjustable in height and laterally, with practical levers, without having to unscrew screws or knobs. This makes it easy to work between plants, without stopping to avoid branches or obstacles.

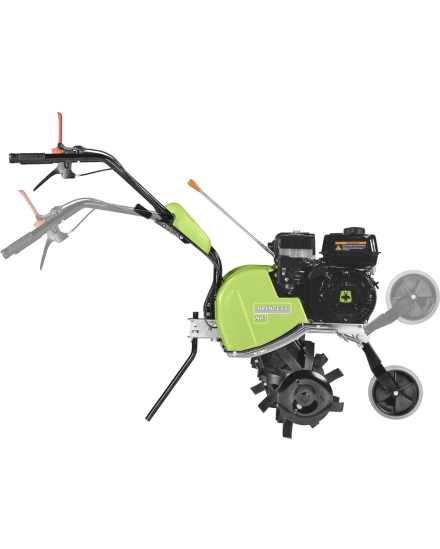

The front wheel, provided as standard, is the best transfer system. It is equipped with a practical spring device that automatically locks it in the working and transfer positions.

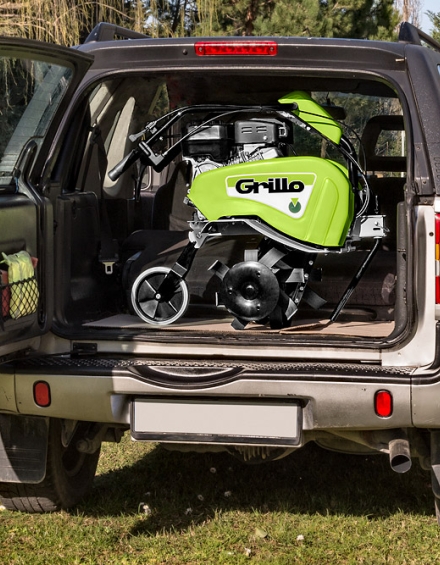

In addition, the Grillo Princess tiller is easy to transport by car because of its reversible handlebar and compact dimensions.

Cleaning and maintenance is very simple! You only need to check periodically the engine oil level and clean the filter. The gearbox doesn't need any maintenance. As with all Grillo products, the Princess was designed and built to last plus retain its value over many years. All components, from the simplest to the most complex, are of a high quality standard. Grillo mounts last generation engines! Frame, handlebar, tiller, everything is built by Grillo in Italy, using the best materials and the latest technology to have high, consistent and 100% controlled quality.

Painting of all Grillo machines is made with a double electrostatic powder coating process. After washing and preparation, a first protective coat is applied then baked in a special oven; this has proven to be the best base for the application of the finish. The second coat consists of powder coating and further baking in an oven at 190°C; this gives the characteristic hardness and shine. All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection includes running the engine in order to check all its functions to guarantee a first class product.

All Grillo machines are distributed and serviced by a widespread dealer network. Spare parts remain available for many years after production has stopped giving you extra confidence in Grillo.

Standard features	Front transport wheel. Two spurs: one for hard soils, the other one for soft soils
Safety devices	The machine stops automatically when user releases the handlebars; guards, handlebars complying with the current laws; silencer-protection

Engine	Loncin G200FA Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio

Fuel tank capacity	3,L

Gearbox	2 forward gears + reverse gear. With gears in oil bath
Final drive	With pinion and chain
Clutch	With lever control on the handlebar.

Standard rotary tiller	With 6 tines and lateral discs, working width 83 cm
Hoes system diametre	32 cm
Working width area with side disks	Adjustable at 83 and 59 cm
Working depth area without side disks	Adjustable at 77, 52 and 30 cm
Working depth	32 cm
Max. revolutions tiller	1st gear 36rpm – 2nd gear 160 rpm – reverse gear 2,3 km/h max
Carter of the tiller	Made of bolted and pressed steel

Handlebar	Height and side adjustable

Weight	65 kg
