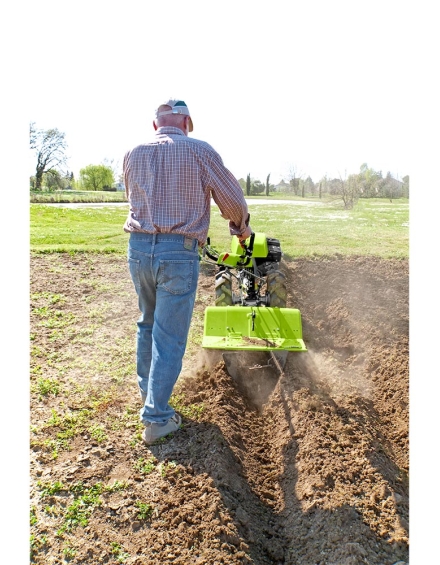

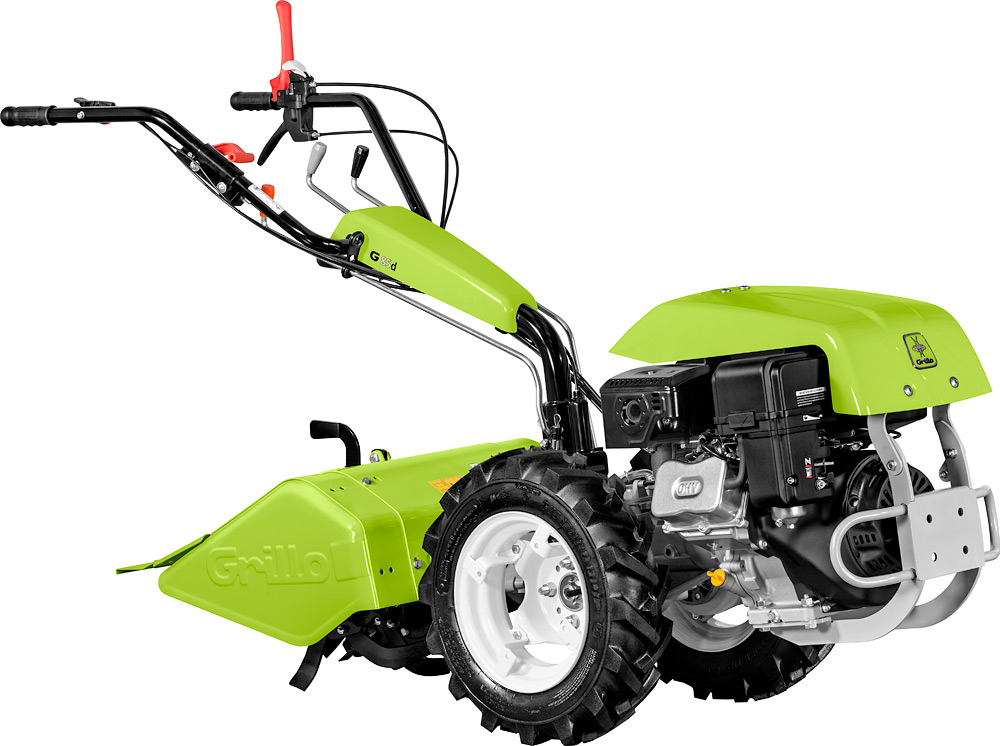

The Grillo G85d is an appropriate walking tractor for working in horticulture, orchards, vegetable plots and for gardening in medium-sized and large areas.

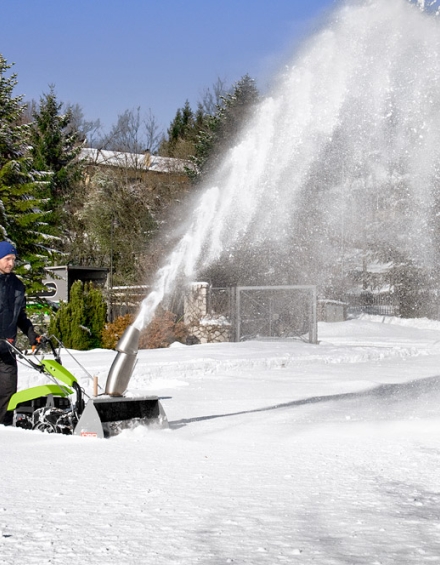

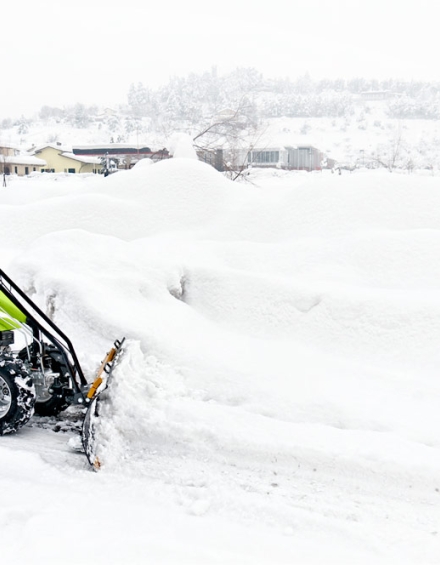

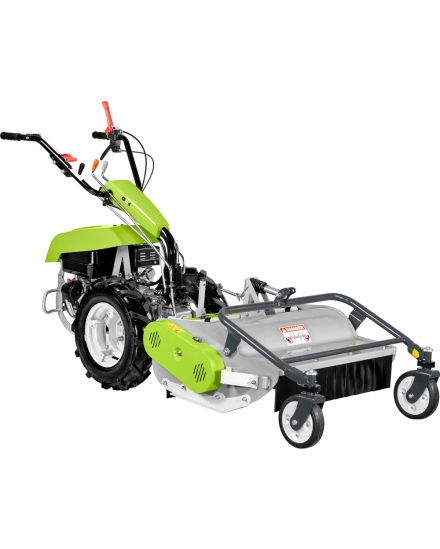

It is fitted with a 4 speed- gearbox with gears in oil-bath, with 2 forward and 2 reverse gears. The differential lock comes as a standard feature. Due to the several safety devices it is fitted with, this walking tractor can be safely used. Thanks to the possibility to reverse the handlebar through 180°, a lot of front and rear-mounted attachments can be connected to the machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower etc. via either a flanged coupling or through a quick coupling for which no tools are needed.

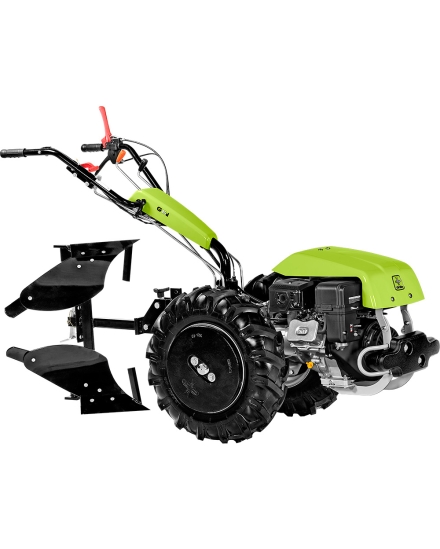

A plough kit is available too and includes larger wheels, adjustable extensions, a 180° turn-wrest plough and wheel weights.
To achieve a greater stability on slopes, it is possible to widen the wheel track up to maximum 25 cm by using fixed or adjustable wheel extensions.
| Engine |
Loncin G300FA Start manuale a fune autoavvolgente Supply benzina 302 cc, 1 Cylinder 9.3 HP, 6.8 KW Raffreddato ad aria Filtro aria a secco Kohler KD15 350 Start manuale a fune autoavvolgente Supply diesel 349 cc, 1 Cylinder 7.5 HP, 5.5 KW Raffreddato ad aria Filtro aria a bagno d'olio Kohler KD15 350 AE Start manuale ad autoavvolgente ed elettrico con batteria 12v Supply diesel 349 cc, 1 Cylinder 7.5 HP, 5.5 KW Raffreddato ad aria Filtro aria a bagno d'olio Honda GX270 OHV Start manuale a fune autoavvolgente Supply benzina 270 cc, 1 Cylinder 8.4 HP, 6.3 KW Raffreddato ad aria Filtro aria a bagno d'olio Rato R300D Start manuale ad autoavvolgente ed elettrico con batteria 12v Supply benzina 301 cc, 1 Cylinder 8.2 HP, 6.0 KW Raffreddato ad aria Filtro aria a secco |
| Fuel tank capacity | 5.4 L eng. R300D - 6.1 L eng. G300FA - 4.3 L eng. KD15 350 - 5.3 L. eng. GX270 |
| Transmission | with oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears |
| Reverse gear unit | by lever |
| Differential locking | Differential with locking device by lever on the handlebar |

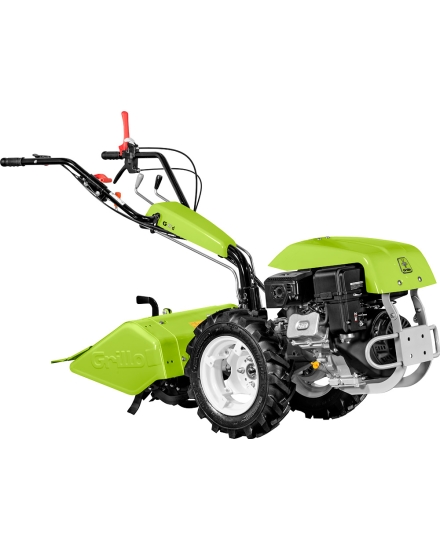

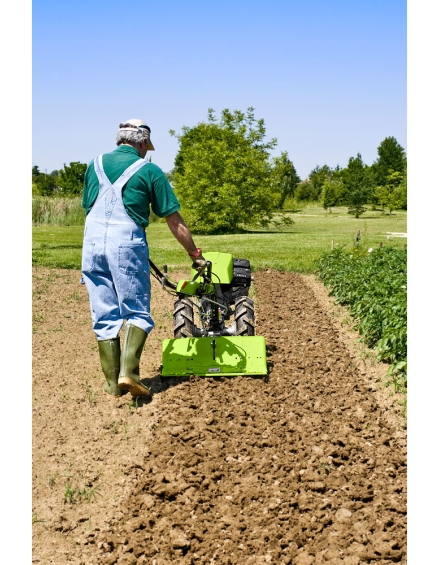

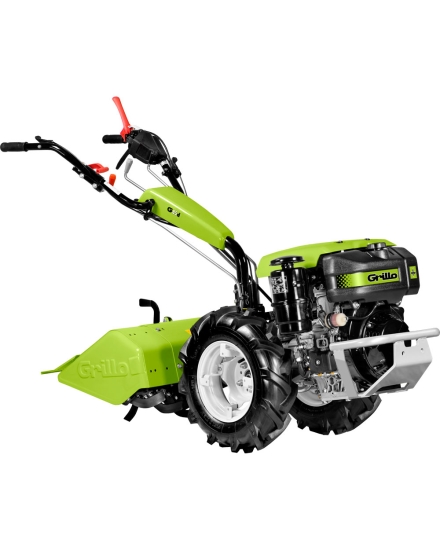

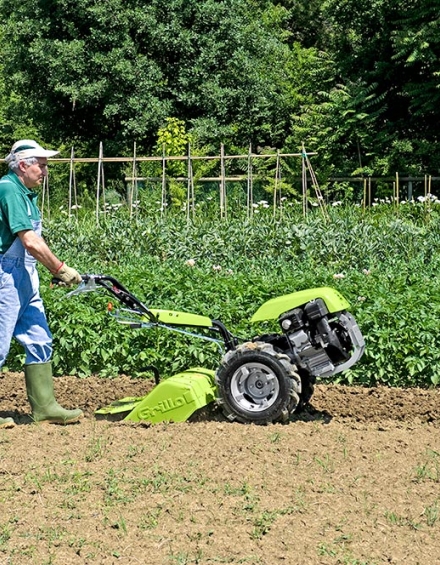

| Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 58 cm |
| Hoes system diametre | 32 cm |
| Working width | Adjustable at 370 and 470 mm (680 mm with extension kit cod. 929112) |
| Working depth | 16 cm |
| Item no. standard rotary tiller | 984511 |
| P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. |
| Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wide steel wheels having diameter 40 x 10 cm. Pneumatic wheels garden 20x10.00- |
| Speed | With 4.00-10 wheels 1st gear 1,2 km/h, 2nd gear 3,0 km/h |
| Service brake | Brake drum (kit upon request cod. 978111) |
| Handlebar | Height and side adjustment. Fitted on anti-vibration blocks |
| Weight | 127 kg (standard version) |
