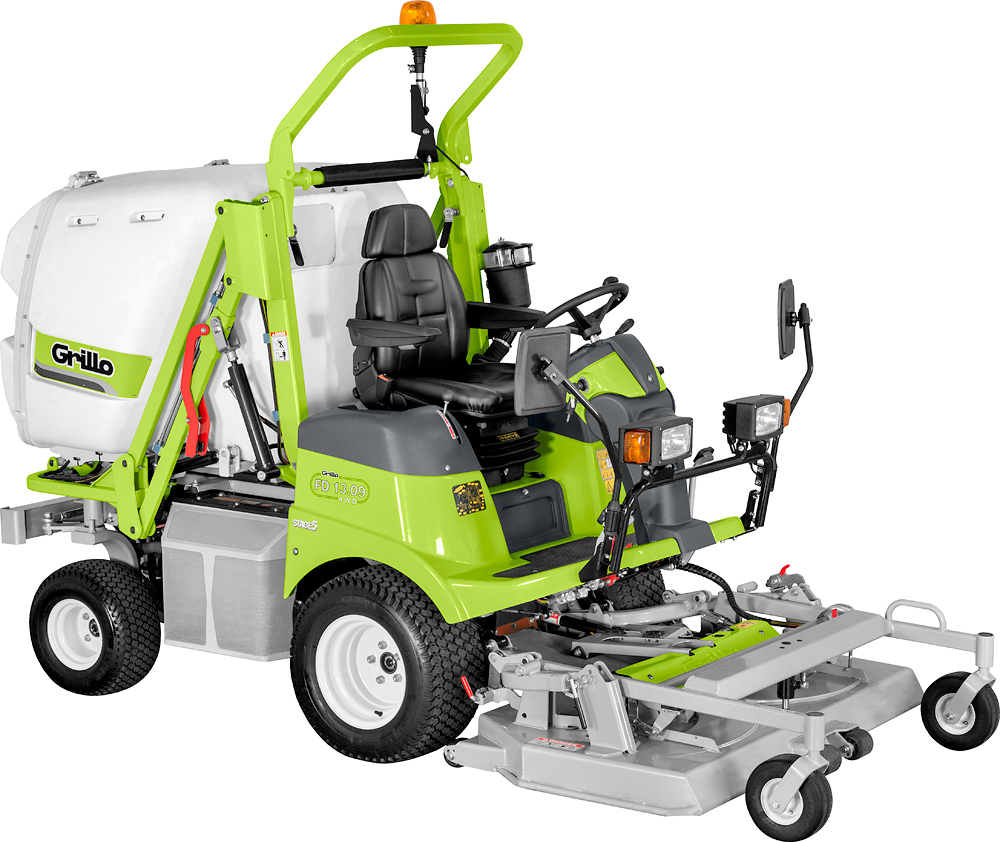

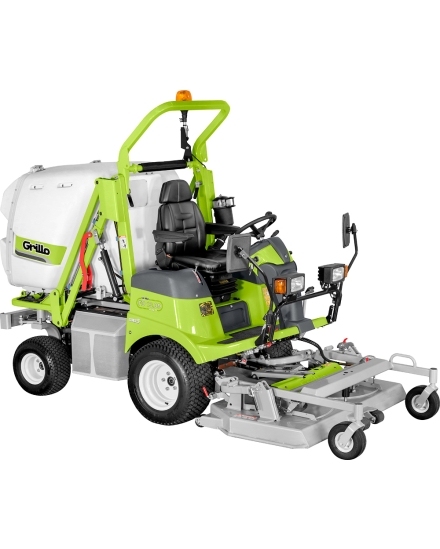

The Grillo FD 13.09 has a large cutting and collecting capacity; in extreme conditions of high and wet grass it is unrivaled.
The grass catcher has an unloading height of 200 cm and 20 cm rear overhang allowing easy unloading onto transport vehicles.
The FD 13.09 is also ideal for leaf collection.
Its agility, its ease of overcoming kerbs and differences in height make it ideal for the maintenance of flowerbeds
and roundabouts.
The Grillo FD13.09 can be equipped with two collecting plates of 132 cm and 155 cm.
Both decks are equipped with hydraulic cutting height adjustment via an electric button from the driver's seat and are supplied with a mulching kit as standard.
The decks are front-mounted with an extremely sturdy central collection and cardan shaft drive with oil-bath angle drives.
The cutting blades and grass catcher system stop automatically when the grass catcher is full to prevent clogging.
Two mulchers are also available for the FD13.09, 160 cm and 130 cm, both of which have the option of using the Scarifier Kit (optional).
In addition, the 160 cm mulcher has the option of using the Grass Blade Kit (optional).
The 130 cm three-blade MP deck has two integrated functions: mulching cut and rear discharge cut. The function change is easily performed via an electric button from the driver's seat.
Three-blade 160 cm LMP cutting deck has three functions in one: mulching cut, side discharge cut and rear discharge cut (supplied with two types of blades).
Switching from one function to the other is achieved by simply removing the bulkheads, an operation performed in the field by the operator quickly and easily.
The 150 cm snow blade is also available.
The PTO clutch is hydraulic multi-disc with built-in blade brake and is actuated electrically via a push button, ensuring great reliability and durability.
The PTO clutch is independent of the collection clutch.
The deck is hydraulically floating and maintains the same ground pressure in all working conditions, reducing grass trampling before cutting and perfectly following ground undulations.
The cutting height adjustment, by means of an electric button from the driver's seat, is continuous and allows the operator to adapt the machine to working conditions easily, quickly and precisely.
The innovative grass collection system uses a loading accelerator that transfers mechanical energy directly to the grass without the need of a large airflow to transport it.
This reduces the noise and consumption required to load the grass into the grass catcher. When the blades are engaged, an automatic mechanism starts the loading accelerator first, then the blades, to keep the ducting clean and facilitate loading. The coupling of the grass catcher to the duct is flexible and allows for perfect sealing.
The inside of the grass catcher is equipped with a filter grid and a mobile grass spreader to ensure complete filling and compaction of the grass.
A sensor detects when the grass catcher is full and stops the rotation of the blades to prevent clogging.
FD 13.09 is equipped with 2 electrically-actuated hydraulic outlets with quick couplings on the front, for controlling accessories such as snow plough, brush, etc..., capable of supplying up to 120 bar pressure and 18 l/1'.
The new 3TNV82A STAGE 5 diesel 1331 cc (26 HP 2800 rpm) 3-cylinder, direct injection, liquid-cooled engine with electric fan and automatic and manual radiator cleaning device, protects the environment and human health by limiting emissions of the main pollutants.
The engine calibration allows optimization of consumption and efficiency, improving the hourly performance and economic return of the machine.
It allows mowing in municipal areas where there are specific legislative requirements to reduce
environmental impact.
Speed is up to 15 km/h. The tank capacity is
23 L.
Stability is excellent because of careful weight distribution.
The machine is equipped with a permanent four-wheel-drive system that is maintained even in the tightest of turns, with four hydraulic motors connected with a special valve and a high-performance variable displacement hydraulic pump for steep slopes (280 bar setting).
The FD 13.09 has a spacious and comfortable driver's seat with air suspension, armrests and excellent control ergonomics.
The tilt-adjustable steering wheel position makes the driver's seat suitable for every operator.
All hydraulic grass catcher and deck controls are operated by electric push buttons.
Excellent sound insulation is provided by the quiet, centralized, low airflow loading system.
The shock-absorbing coupling that keeps the grass duct and grass catcher hermetically sealed together, and the provision of an air pre-filtering system positioned in the clean area, make the machine comfortable and suitable for large areas and long hours of non-stop driving.
| Engine |
Yanmar 3TNV82A Stage5 Start elettrico con batteria 12v Supply diesel 1331 cc, 3 Cylinders 26.0 HP, 18.9 KW Raffreddato a liquido Filtro aria a secco con cartucce intercambiabili, cartuccia di sicurezza e prefiltro |
| Fuel tank capacity | 23 L |
| Hydraulic oil tank | 20 L |
| Traction | 4WD |
| Differential locking | Automatic differential lock and manual with push button |
| Cutter deck | Double-bladed front deck with collection. Gear distribution. Hydraulic lifting. Solid puncture-proof wheels |
| Cutting deck width | 141 cm |
| Cutting width | 132 cm |
| Cutting height | From 2 to 10 cm, hydraulic adjustment |
| Grass catcher charging system | Load accelerator, with motorized load distributor inside the grass catcher |
| Grass collector capacity | 900 L |
| Grass collector discharging system | Automatic opening for grass-catcher hydraulic discharge |
| Maximal discharging height | 200 cm |
| Rear projection | 20 cm |
| Front tyres | 23x10.50-12 TURF WHEELS |
| Rear tyres | 18x8.50-8 TURF WHEELS |
| Steering system | Steering wheel with hydraulic drive, with pedal operated forward and reverse gears |
| Speed | From 0 to 15 km/h |
| Inner turning radius | 31 cm |
| Seat | Super comfortable, cushioned, and adjustable |
| Service brake | Drum brake |
| Parking brake | Drum brake |
| Mowing capacity per hour (indicative) | 12000 m²/h |
| Length | 325 cm |
| Width | 141 cm |
| Height | 175 cm |
| Distance between axles | 123 cm |
| 15 cm |
| Weight | 1040 kg without cutting deck; 1230 kg with cutting deck |
