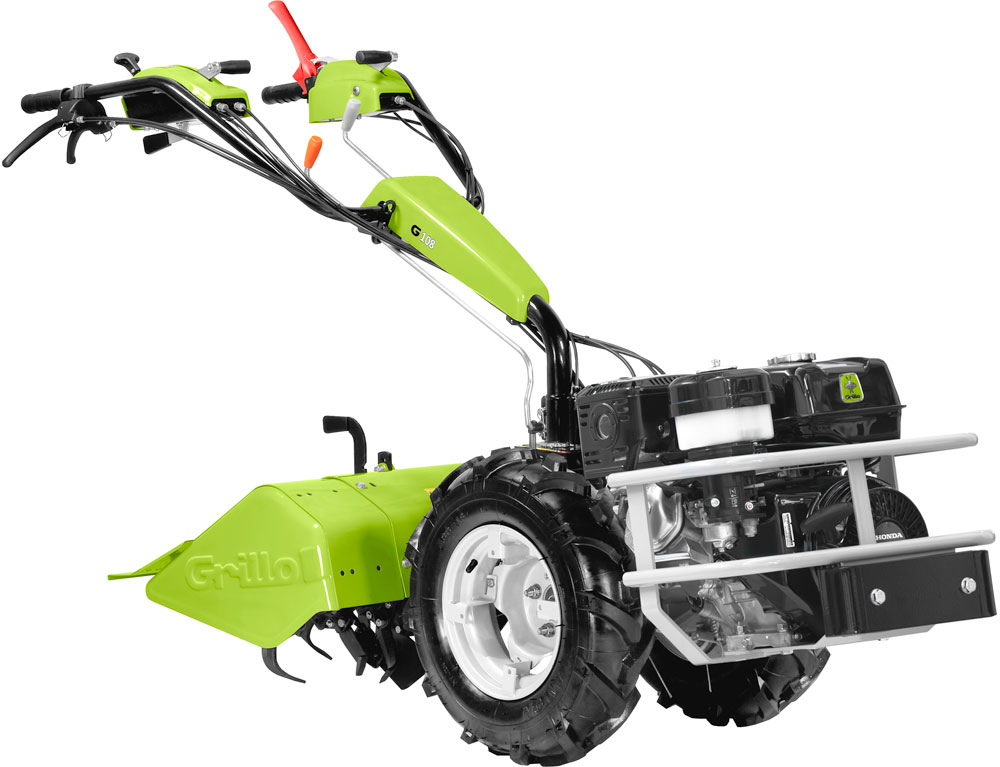

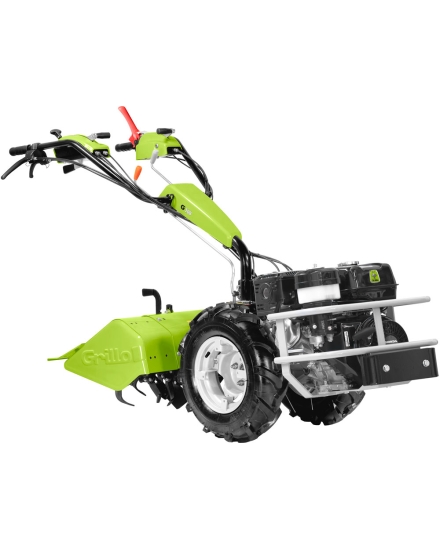

A powerful and versatile walking tractor! Differential and brakes come as standard features.
The Grillo G108 is an ideal walking tractor for working on large areas in agriculture, horticulture, vegetal plots and for gardening.
It is a well-balanced machine, fitted with a 6 speed-gearbox in oil-bath with 3 forward + 3 reverse gears. The differential lock comes as a standard feature.
Several devices, such as the active clutch and the automatic decelerating device when the reverse gear is engaged, allow the user to work safely.
Thanks to the possibility to 180° reversible handlebar, several front and rear-mountable implements can be attached via a flanged coupling or a quick coupling without needing any tools.
You have also the possibility to attach a plough kit comprehending larger wheels, wheel extensions, 180° turn-wrest plough and wheel weights.
The quick gear-inverter lever reverses the forward movement when the handlebar is turned by 180°.
To achieve a greater stability on slopes you can widen the wheel track up to 25 cm by using the appropriate fixed or adjustable wheel extensions.
| Safety devices | Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed. |
| Engine |
Honda GX270 OHV Start manuale a fune autoavvolgente Supply benzina 270 cc, 1 Cylinder 8.4 HP, 6.3 KW Raffreddato ad aria Filtro aria a bagno d'olio Honda GX270 Start elettrico con batteria 12v Supply benzina 270 cc, 1 Cylinder 8.4 HP, 6.3 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 5,3 L |
| Transmission | Gear type in oil bath. |
| Gearbox | With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears. |
| Reverse gear unit | Rapid through lever. |
| Clutch | Conic and active. |
| Differential locking | Through lever on the handlebar. |
| Standard rotary tiller | Adjustable with tines x4. Working width: cm 68. |
| Hoes system diametre | 32 cm. |
| Working width | Adjustable at 37, 47, 58, 68 cm. |
| Working depth | 16 cm |
| Item no. standard rotary tiller | 984611 |
| P.T.O. | 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation). |
| Available tyres | 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed) |
| Speed | With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h. |
| Service brake | Drum brake, as a standard feature. |
| Handlebar | With height and side adjustment and reversible. |
| Weight | 122 kg |
