Sickle bars

GF 2

 A well balanced sickle bar with quick coupling for other implements

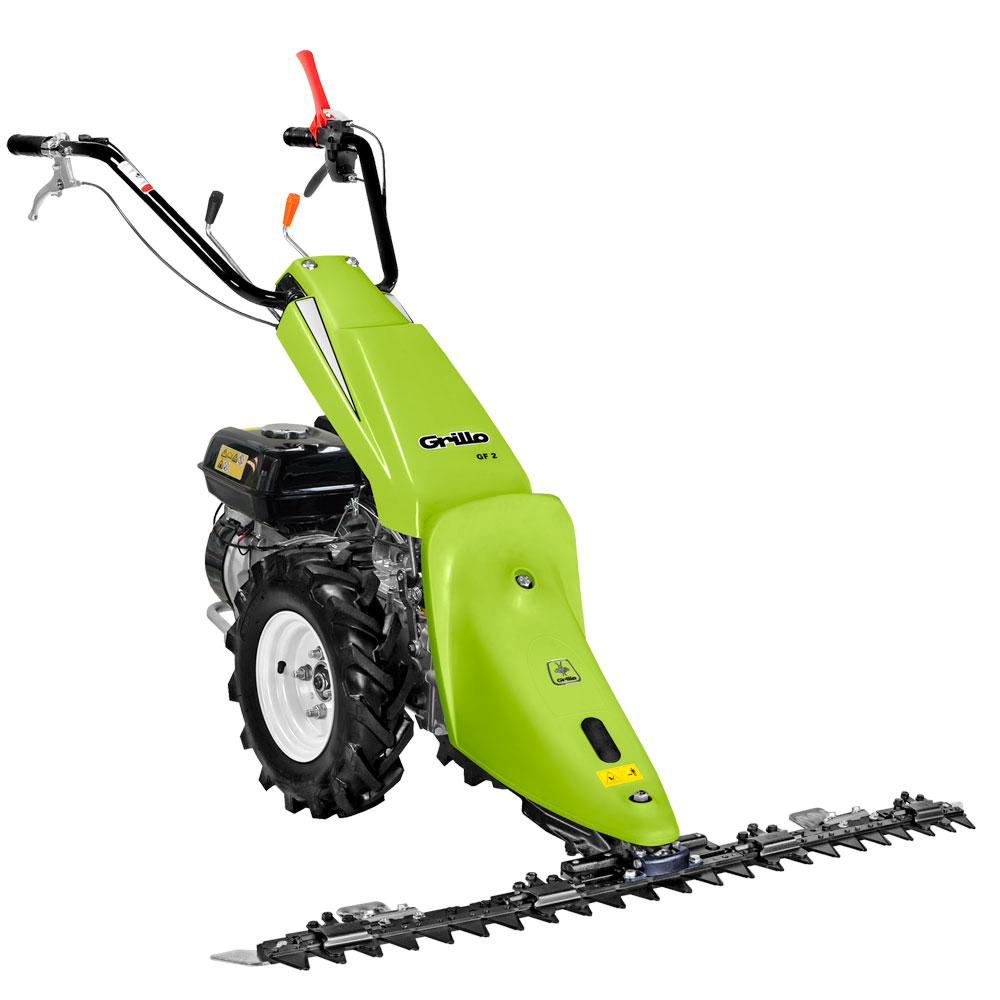

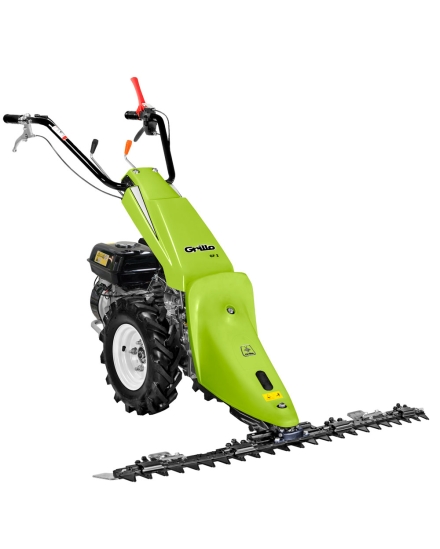

The Grillo GF2 is a perfectly balanced sickle bar. Engine and P.T.O. are positioned in such way that thanks to the ground clearance obtained it is ideal for cutting on slopes.
The centre of gravity was designed to ensure manoeuvrability and safety in the most demanding working conditions.
The three gears can all be used whilst mowing.

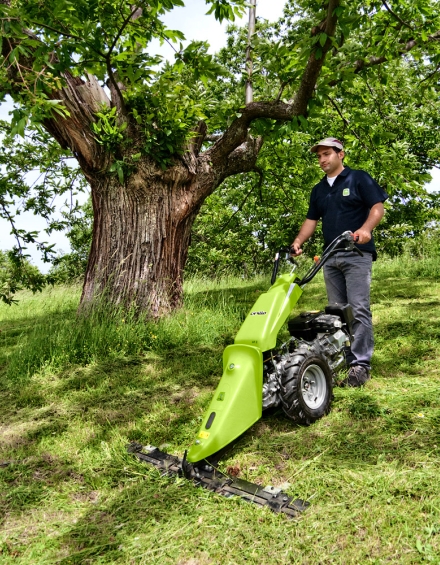

The Grillo GF2 is fitted with an active cone clutch, a device which ensures remarkably the operator’s safety.
The wide choice of cutter bars ensures meets the requirements of all operators.
The numerous accessory range attached by means of a quick coupling, make the GF2 a multi-purpose machine!
Grillo GF2 è dotato di frizione conica attiva, un dispositivo che aumenta notevolmente la sicurezza dell'operatore

The standard cutter bar is the single blade PRO CUTTER BAR, 117 cm width and crank action.
It has been conceived to cut in rough and fallow land, but it can besuccessfully used to cut hay too and also in agriculture to clean in-between orchards, thanks to its excellent manageability
The conveyor, made from shock-proof polypropylene, is oscillating and mounted on anti-vibration rubbers; this feature, combined with its special profile, allows the cutter bar to discharge grass under the most demanding
working conditions, reducing clogging and making work more efficient.
Blade-holders are adjustable and made of steel
The cutter bar teeth are jagged to ensure a durable service life and reduce wear; these alloy-steel teeth are subjected to special heat treatment.

GF2
The 117 cm double blade central cutter bar is fitted with two blades moving in opposite direction. This “scissor like” cutting action considerably reduces the vibrations on the handlebar when mowing, ensuring an optimal quality cut in all conditions.
Because of its characteristics the double central cutter bar of 117 cm is ideal for cutting in rustic areas, fruit orchards or to obtain grass for animal feed.
The floating grass disperser is mounted on anti-vibration rubbers with a special profile to dispel the grass in the most demanding conditions; the grass is cut, dropped to the ground by the action of the wheels allowing easier control when moving forwards.
The premium quality blades are made with special heat treated steel and the blade tensioners made of a flexible material ensure contact between the two blades.
Grillo GF 1
The normal central cutter bar of 110 cm has a crank action and quick coupling.
It’s the specific cutter bar for mowing and obtaining grass for animal feed.
The crank mechanism was built with premium steel types and is fitted with grease nipples on all articulating parts.
The floating grass disperser is mounted on anti-vibration rubbers with a special profile to dispel the grass in the most demanding conditions; the grass is cut, dropped to the ground by the action of the wheels allowing easier control when moving forwards.
The cutter bar’s teeth are have a special profile for a perfect cut and are made of special heat treated steel.
The blade tensioners are adjustable ensuring constant contact between blade and teeth.
GF2

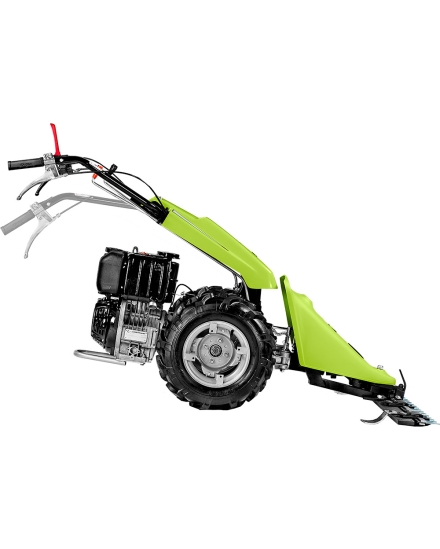

The GF 2’s weight distribution was designed to ensure stability when mowing on slopes. To further increase the stability on slopes you have the possibility to increase the track by up to 24 cm with the wheels extensions. The agricultural profile tyres ensure high grip and the handlebar can be adjusted laterally.

L'attacco rapido del GF2 consente la sostituzione degli accessori senza dover svitare alcun dado

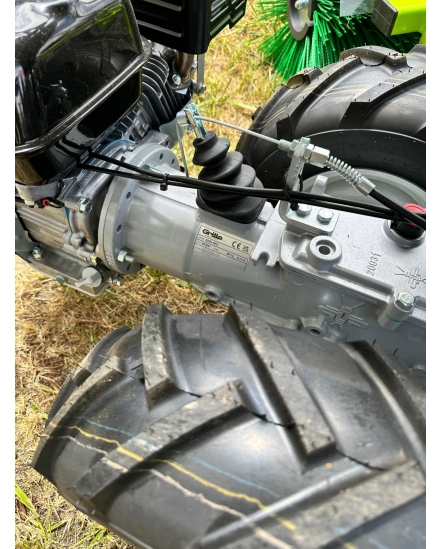

The GF2’ mechanic transmission with its gears in an oil bath are located inside the carter made of pressed aluminium. The lever operated gears and P.T.O. are easily reachable.
The active cone clutch operates the drive, when leaving the handlebar the sickle bar will immediately stop whilst the engine remains running. In order to further increase the operator’s safety, the drive lever is equipped with a double control to avoid any involuntary actions. The double control can be activated with only one hand.


La leva della frizione conica attiva comanda l'avanzamento, quando si lascia il manubrio la motofalciatrice si ferma e il motore rimane in moto

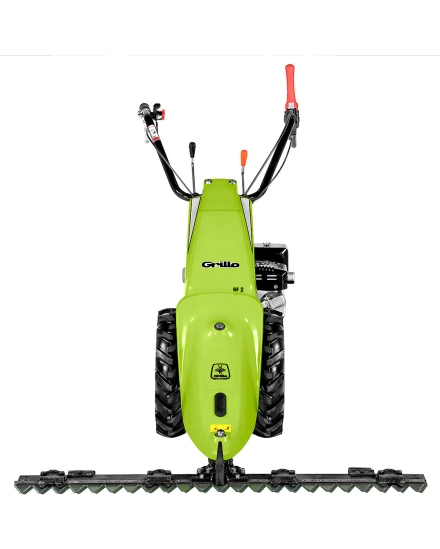

The GF2’s gearbox has 3 forward and 3 reverse gears is designed to obtain the optimum speeds for mowing, i.e. 1.0, 2.0 and 3.0 km/h, when fitted with the “Tractor” wheels 4.00-8.

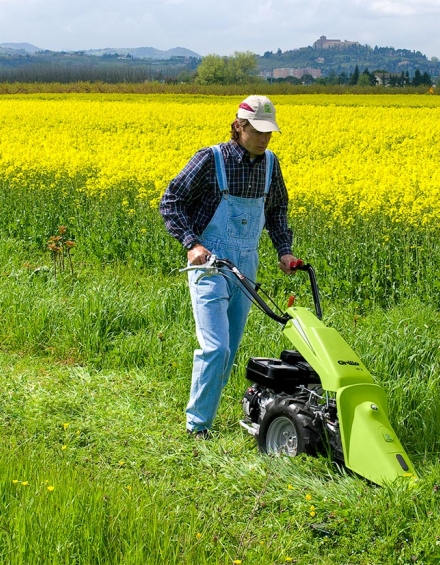

For a level cut, the cutter bar has to be free to incline adapting itself to the ground’s unevenness.
The handlebar was mounted on vibration-proof elements which dampen the vibrations also laterally.
The handlebar is laterally adjustable in order to work more easily on slopes and can be adjusted in height in order to meet the user’s requirements. Furthermore it is reversible and can be lowered to considerably reduce the machine’s size.
All controls are in a comfortable position, including the handlebar’s adjustment levers.
Per eseguire uno sfalcio regolare, la barra falciante del Grillo GF2 è libera di inclinarsi adattandosi alle irregolarità del terreno
The GF2 is fitted with either a Loncin G200FA petrol engine or with the Honda GX200 OHV petrol engine; both models have recoil start and are fitted with the latest technological innovations ensuring easy starting, reliability, low emissions, reduced consumptions, high performance and vibrations which are reduced to the minimum. Grillo GF2 engines are fitted with rear bumper.

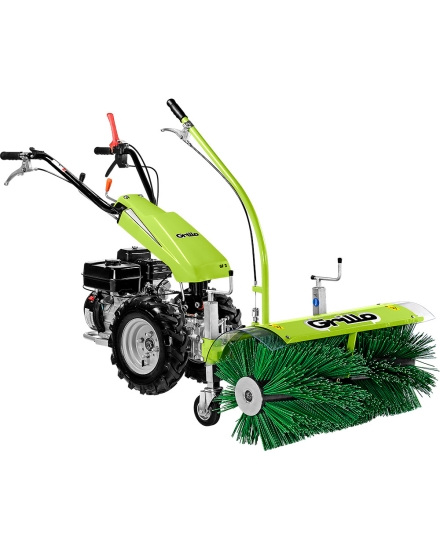

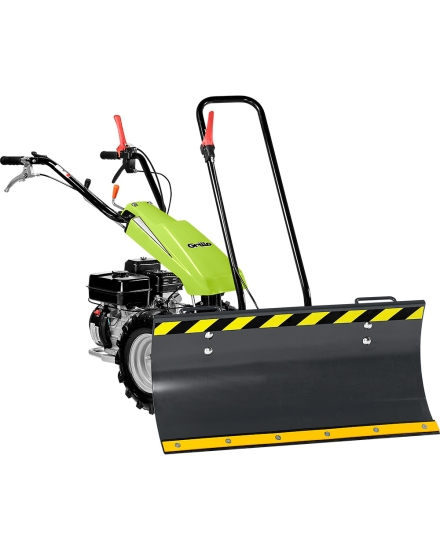

Grillo have implements available to enhance the GF2’s usefulness, such as a 50 cm rotary cutter with blade brake and, for winter, a 100 cm orientable snow blade as well as a 80 cm orientable and tilting sweeper.

Il GF1 dispone di motorizzazione Robin Subaru EX17 OHC benzina e Kohler-Lombardini SH265 OHV benzina
The GF2, as all products by Grillo, was projected and built to last and keep its value for many years.
All components, from the simplest to the most complex are of a high quality standard.
Grillo fits only the best engines of the world on its machines!
The GF2 passed very stringent tests to prove the reliability of its drive system, cutter deck, chassis and of all other components.
Handlebar, gears, carter, all are built by Grillo in Italy using premium materials and cutting edge technology. All this to achieve constant and 100% controlled high level quality.
Grillo GF2 con piatto trinciaerba da 50 cm
Painting of Grillo machines consists of a double electrostatic powder coated process. At the beginning there are the washing baths and the preparation, then a first protective coat is applied together with the baking in the oven, turns out to be the best basis for the application of the finishing. The second coat consisting of varnish and a further baking in the oven at 190°C convey the characteristic hardness and brilliance.
All GF2 have been mounted with care for every detail and tested scrupulously by specialised personnel. Final inspection means also machine with started-up engine in order to check the functionality. This is a further and final guarantee for a high quality product.

All Grillo products are distributed and serviced by a widespread Grillo specialist dealer net. Spare parts remain available also after a lot of years.
Grillo GF2 è dotato di frizione conica attiva, un dispositivo che aumenta notevolmente la sicurezza dell'operatore
Safety devices Active conic clutch according to law
Engine Loncin G200FA
Start manuale a fune autoavvolgente
Supply benzina
196 cc, 1 Cylinder
5.5 HP, 4.1 KW
Raffreddato ad aria
Filtro aria a bagno d'olio
Honda GX200 OHV
Start manuale a fune autoavvolgente
Supply benzina
196 cc, 1 Cylinder
5.5 HP, 4.1 KW
Raffreddato ad aria
Filtro aria a bagno d'olio
Fuel tank capacity 3 L eng. G200FA - 3,1 L eng. GX200
Transmission with oil bath gears
Gearbox 3 forward gears + 3 reverse gears
Clutch conic active
Standard cutter bar Single-blade PRO cutter bar 117 cm with crank action, p/n 9M6811 9M7511
P.T.O. 965 rpm anticlockwise rotation
Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks) and 16x6.50-8 (fixed disks)
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Weight Weight: standard version 96 kg (with GX200); 98 kg (with G200FA)
Grillo original accessories are designed to be easily installed, allowing you to spend more time working on your garden or grounds. Transform your Grillo machine into a versatile partner.
Pair pneumatic "Tractor" wheels 4.00-8 [fixed discs] - COD. 900112
Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair
Pair pneumatic "Tractor" wheels 16X6.50-8 [fixed discs] - COD. 912712
Pneumatic wheels 16x6.50-8 (fixed disks) (Pair)
Weight 20 kg for front blade - COD. 9E6111
Weight for front blade
Floating front blade 100 cm - COD. 9E6411
Front blade 100 cm
Rubber end for blade 100 cm - COD. 9E5911B
Rubber end for blade 100 cm
Pair wheels extensions 12 cm - COD. 937112
Wheel extensions 12 cm (pair) (fit 2 pairs max)
Central cutter double blade bar 117 cm with action - COD. 9L2811
Double blade central cutter bar 117 cm with action
Cutter bar with crank action with quick coupling - COD. 998211
Cutter bar action with quick coupling
Cutter bar side protections for cod. 9L2811 and cod. 9L6911 - COD. 9C0112
Cutter bar side protections for item 9L2811 and item 9L6911
Side protections for cutter bar p/n 9L2811 and 9L6911
Rotary cutter 50 cm - COD. 9M5311
50CM BRUSH MOWER G55/GF2
9M3422
Snow chains for 4.00-8 wheels (pair)
9M3722
Snow chains for rear wheels 16x6.50-8 Climber 7 series (pair)
9M6811 9M7511
Single-blade PRO cutter bar 117 cm with crank action
9M7211 9M7511
Middle cut fingers central cutter bar 110 with crank action
