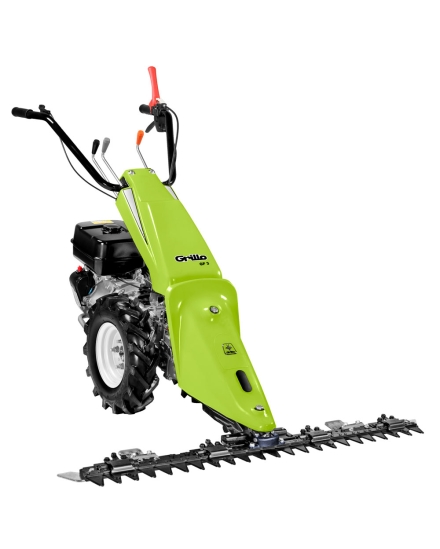

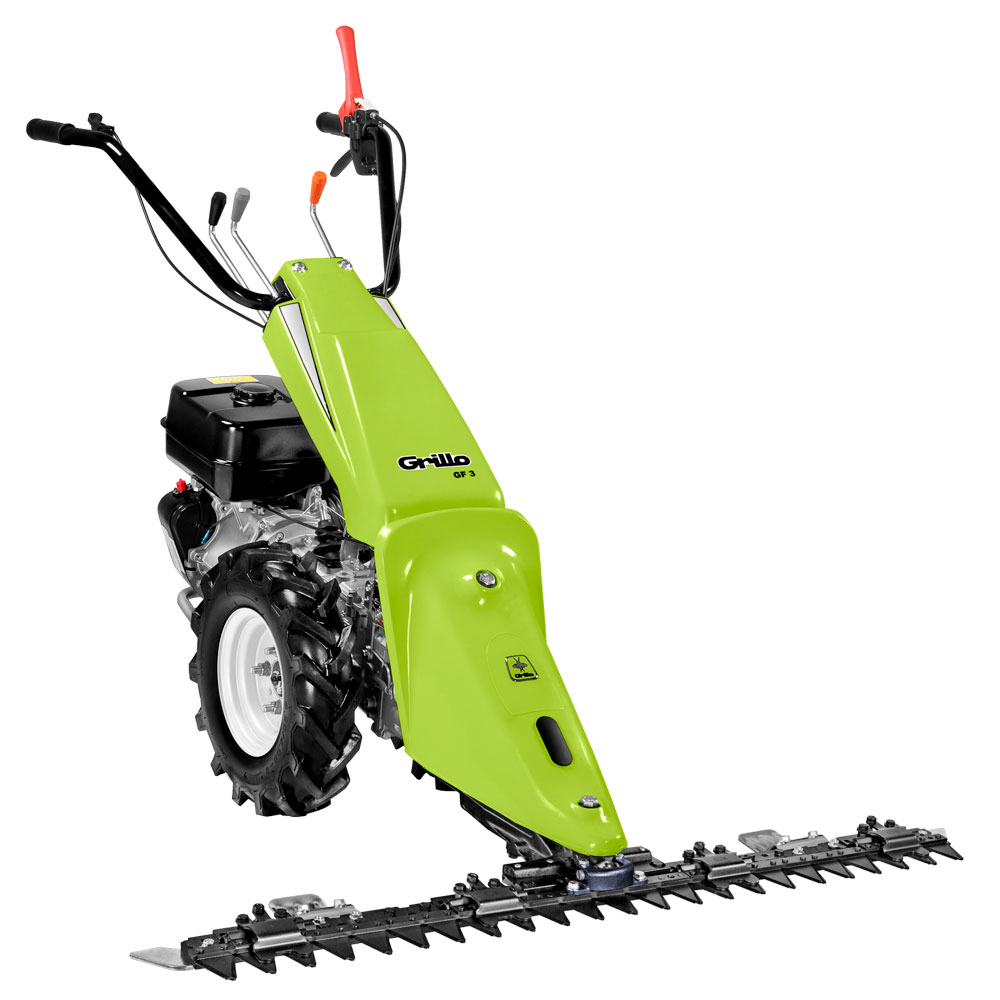

The standard cutter bar is model “Tirol” with a 115 cm cutting width and with crank action.
It’s appropriate for cutting all grass types and can be used in rustic areas, fruit orchards or grass for animal feed.
The crank mechanism was built with top quality steel and is equipped with greases nipples on all articulating parts.
The grass disperser is mounted on vibration-proof rubbers, has a special profile to better grass dispersal in the most demanding situations: the cut grass is taken and dropped on the ground by the action of the wheels allowing easier control when travelling forwards.
The blade sections are made of special steel and fixed with 6 mm rivets
The cutter bar’s teeth with a special profile to give a perfect cut and are made from heat treated steel.
The blade tensioners are adjustable ensuring constant adherence between blade and teeth.
The 115 cm cutter bar “Tirol” is available also with oil bath action and adjustable cutting head.
The oil bath action reduces maintenance and makes the cutter bar ideal for intensive and demanding work.
The 117 cm double blade central cutter bar with its action has a mulch cut mode and is fitted with two blades running in opposite direction. This “scissor like” cutting action reduces the vibrations on the handlebar when mowing ensuring an optimum quality cut in all conditions.
Thanks to its characteristics the central 117 cm double blade cutter bar is ideal for cutting in rustic areas, fruit orchards, or produce grass for animal feed.
The grass disperser is mounted on vibration-proof rubbers, has a special profile to better grass dispersal in the most demanding situations: the cut grass is taken and dropped on the ground by the action of the wheels allowing easier control when travelling forwards.
High quality blades are made from heat treated steel and the blade tensioners made of flexible material to ensure contact between the two blades.

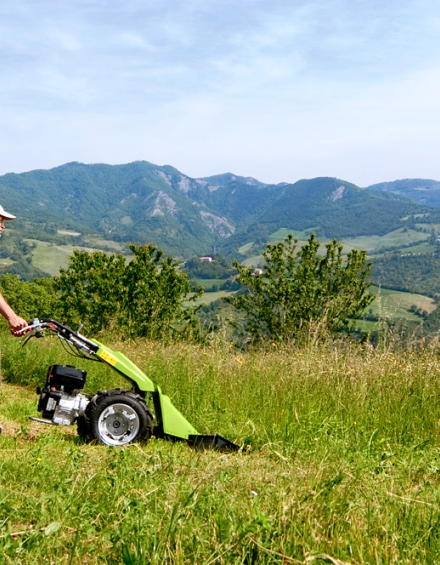

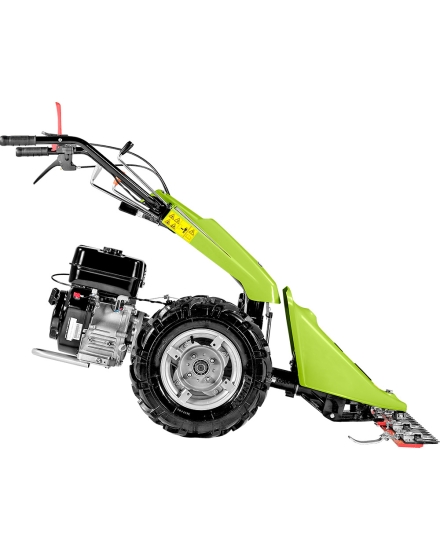

The GF3’ s weight distribution has been designed to increase its stability when mowing on slopes. In order to further increase the stability Grillo has a wheels extension kit available to enlarge the track up to 24 cm, a highly adherent tyre profile design as well as a laterally adjustable handlebar.
| Safety devices | Active conic clutch according to law |
| Engine |
Loncin G300FA Start manuale a fune autoavvolgente Supply benzina 302 cc, 1 Cylinder 9.3 HP, 6.8 KW Raffreddato ad aria Filtro aria a secco Honda GX270 OHV Start manuale a fune autoavvolgente Supply benzina 270 cc, 1 Cylinder 8.4 HP, 6.3 KW Raffreddato ad aria Filtro aria a bagno d'olio Norwik SH178FA Start manuale a fune autoavvolgente Supply diesel 306 cc, 1 Cylinder 5.3 HP, 4.0 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 6,1 L eng. G300FA - 3,5 L eng. SH178FA Norwik - 5,3 L. eng. GX270 |

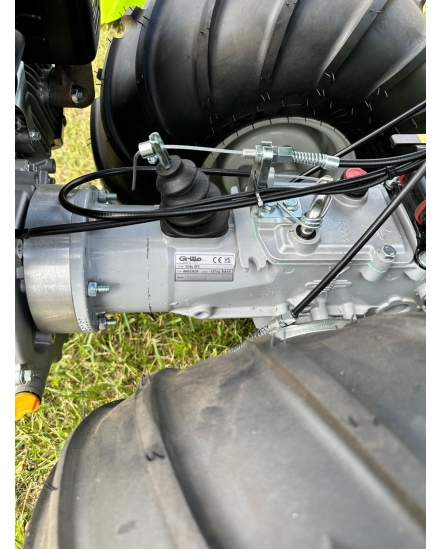

| Transmission | with oil bath gears |
| Gearbox | 3 forward gears + 3 reverse gears |
| Clutch | conic active |
| Standard cutter bar | Single-blade PRO cutter bar 117 cm with crank action, p/n 9M6811 9M7111 |
| P.T.O. | 965 rpm anticlockwise rotation |
| Available tyres | Pneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks), 5.00-10 (adjustable disks). Pneumatic Turf wheels 20x10.00-8 |
| Handlebar | height and side adjustment. Fitted on anti-vibration blocks |
| Weight | Weight: standard version 105 kg |
