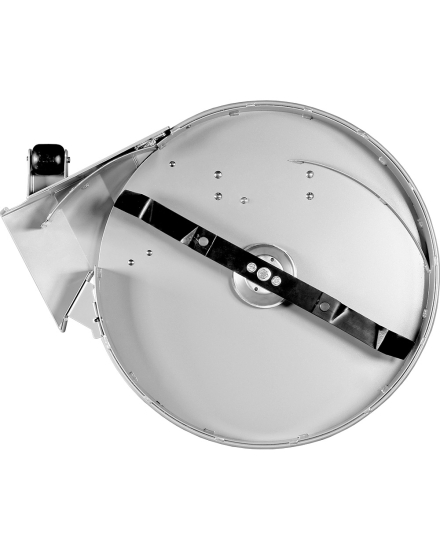

The single-blade cutting deck is made entirely of steel, the blade ends are floating shock-resistant with a special cutting edge profile that favors precise cutting in all grass conditions.
The cutting height adjustment ranges from 2.5 to 8 cm and is made by means of a 6-position lever. The same lever has an additional transfer position that allows the entire cutting deck to be lifted off the ground, automatically stopping the rotation of the blades to easily overcome kerbs and obstacles.
The tension of the deck belt is self-adjusting. The entire deck is kept parallel to the ground at all times, improving cutting quality even after years of use!
The blades are engaged via an electric button located near the steering wheel that activates the PTO's electromagnetic clutch.
Side discharge cutting is practical when the grass is high, suitable for those who do not cut regularly.
The cut grass is channeled into the steel side casing. The protruding casing is constructed in accordance with standards, ensuring optimum safety for the operator. It is also equipped with an anti-skid roller.
As an additional measure to improve reliability and impact protection, the casing hinges are located on the inside of the casing.
The Mulching cut, which is ideal for regular cutting, finely chops up the cuttings, thereby promoting the re-absorption of nutrients by the soil.
In addition, Mulching cutting can be performed after the first pass in rear discharge cutting for a better finish.
The transmission consists of a hydro-static axle equipped with a fan to cool the oil, an essential feature to increase the efficiency of the transmission by reducing its operating temperature. The speed is infinitely variable from 0 to 9 km/h and allows the precise choice of forward speed.
The tilting front axle keeps the four wheels attached to the ground even in very uneven conditions.
The differential lock is standard, is controlled by a foot pedal and is indispensable in low grip conditions on slopes or if the terrain is extremely uneven and the machine remains on 3 wheels.
The mechanical steering is smooth and precise, the inner turning radius is 45 cm and allows excellent maneuverability even on paths full of obstacles such as plants, lampposts, etc.
The MD 18 is compact, equipped with a roll bar, a low center of gravity, an optimal weight distribution, and is built for maximum stability and operator safety.
The seat placed close to the ground, the vertical-axis endothermic engine positioned very low down, the ventral plate placed exactly between the 4 wheels and the battery placed on the front axle, make the machine exceptionally stable.
The MD 18 is fitted with a mechanically suspended seat as standard, and the suspension can be adjusted according to the operator's weight: driving is comfortable even after many hours of work!
The feet rest on a foot board that can be adjusted to 2 positions.
| Standard features | Tow bar and front headlight led |
| Engine |
Briggs & Stratton 7160 EXi Intek Start elettrico con batteria 12v Supply benzina 656 cc, 2 Cylinders 15.2 HP, 11.3 KW - 18.0 HP Raffreddato ad aria Filtro aria a secco |
| Fuel tank capacity | 7 L (emergency supply 1 L) |
| Gearbox | Hydrostatic transmission |
| Clutch | Electromagnetic with P.T.O and blade brake. |
| Differential locking | Engaged via a pedal |
| Cutter deck | Side discharge and mulching with Quick Shift lever. |
| Cutting width | 83 cm |
| Cutting height | From 2,5 cm (±1.3’’) to 7,5 cm (±3’’), with 6 different cutting positions and 1 transfer position. |
| Peripheral blade speed | 72 m/s |
| Front tyres | 13x5.00-6 Turf wheels |
| Rear tyres | 16x7.50-8 Turf wheels |
| Speed | Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h |
| Inner turning radius | 45 cm |
| Seat | With adjustable suspension and equipped with armrests and roll-bar |
| Parking brake | Rear parking disc brake |
| Mowing capacity per hour (indicative) | 6000 m^2/h |
| Length | 190 cm |
| Width | 113 cm |
| Height | 101 cm |
| Weight | 238 kg |
