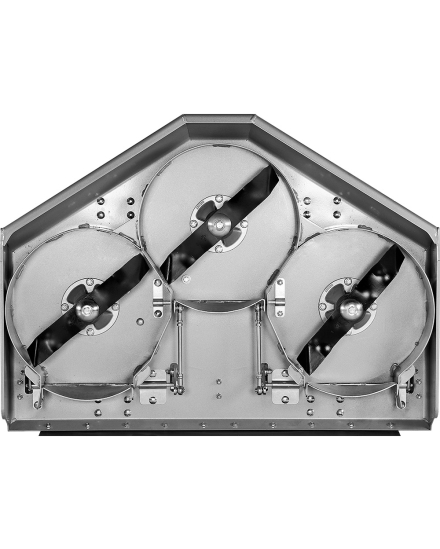

The cutting deck has 3 blades.
The cutting height ranges from 2.5 to 10 cm, the continuous adjustment ("infinite" positions) guarantees a quality cut, the lever control is assisted by a gas spring for maximum comfort.
The cutting apparatus is made entirely of steel and is not afraid of impact with stones. The large-diameter blade shafts and the cutting transmission guarantee reliability even in the toughest working conditions for many hours and in absolute safety.
The tension of the deck belt is self-adjusting. The entire unit is kept parallel to the ground at all times, improving cutting quality even after years of use!
The blades are engaged by means of an electric button located near the steering wheel that activates the PTO's electromagnetic clutch.
The 'Quick Shift' lever allows you to change cutting mode while comfortably seated in the driver's seat, even during cutting and without interrupting work. There is no need to change blades.
Rear discharge cutting is practical when grass is tall, suitable for those who do not mow regularly.
The Mulching cut, which is ideal for regular mowing, finely chops up the cuttings, thereby promoting the re-absorption of nutrients by the soil.
In addition, Mulching cutting can be performed after the first pass in rear discharge cutting for a better finish.

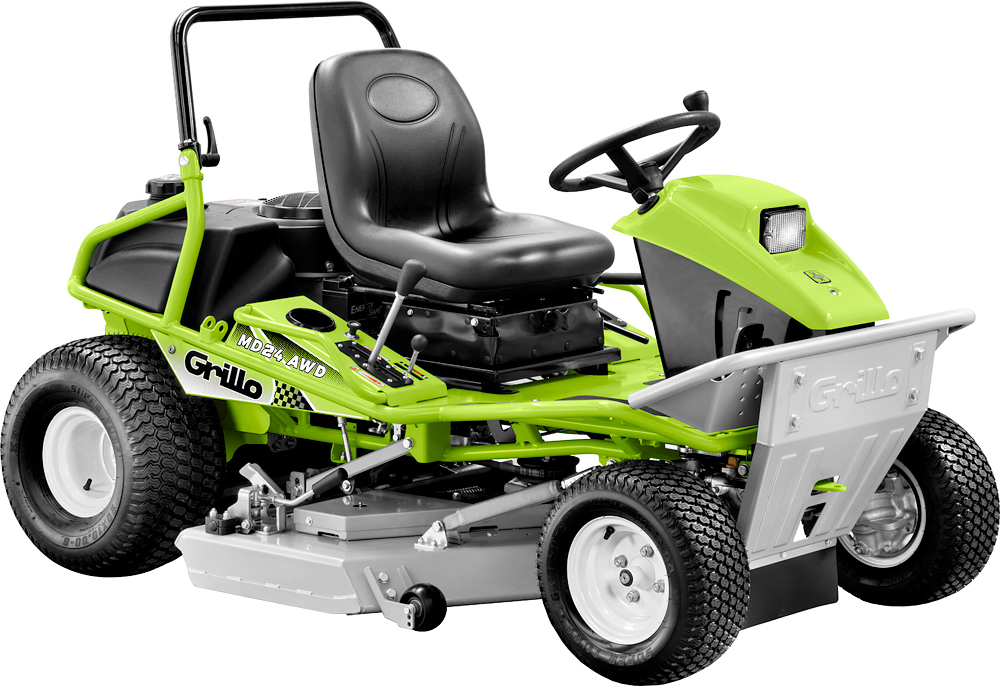

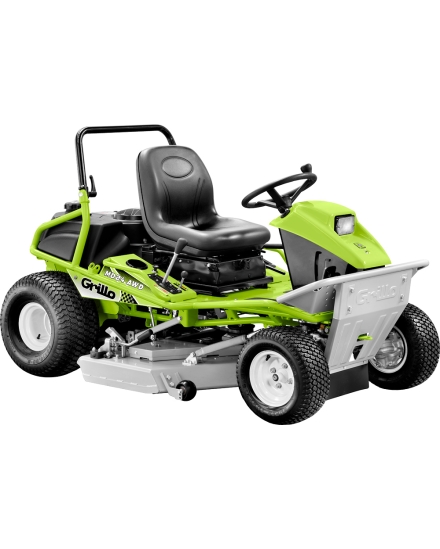

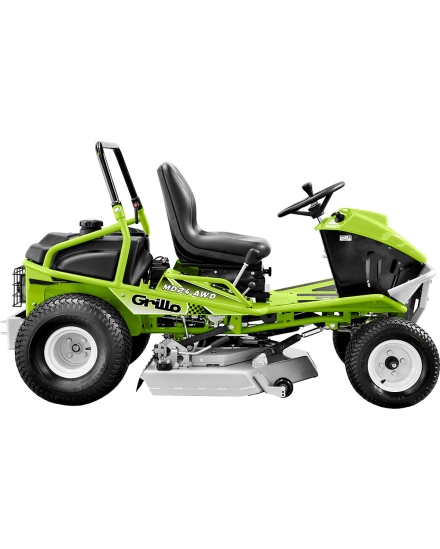

The MD 24 AWD is compact, with a low center of gravity and optimum weight distribution, and is built for maximum stability and operator safety.
The seat placed close to the ground, the vertical-axis endothermic engine positioned very low down, the central deck placed exactly between the 4 wheels and the battery placed on the front axle, make the machine exceptionally stable.

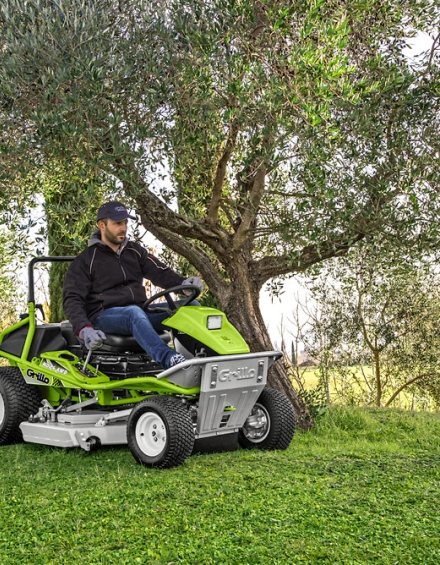

The roll-bar can be folded down in seconds to facilitate working under plants. Because of two practical levers, the roll-bar can be lowered or raised without the use of tools.
The MD 24 AWD is equipped as standard with a mechanically suspended seat, the suspension can be adjusted to suit the operator's weight: driving is comfortable even after many hours of work!

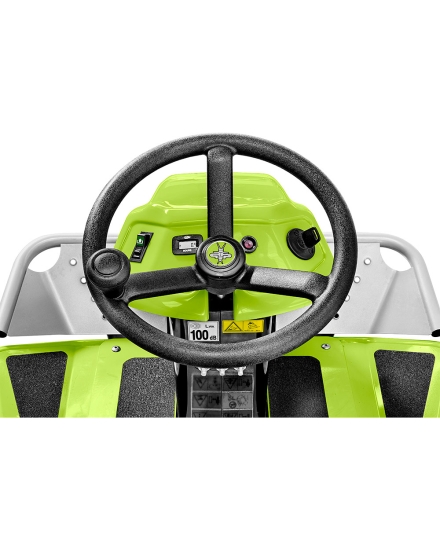

The driving controls are ergonomic, the advance lever allows you to select the speed precisely. With the help of the brake pedal, the advance lever automatically returns to zero and the rear axle is braked. The parking brake on the rear wheels is lever-operated.
| Engine |
Briggs & Stratton 7220 PXi PROFESSIONAL Start elettrico con batteria 12v Supply benzina 656 cc, 2 Cylinders 18.0 HP, 13.2 KW - 22.0 HP Raffreddato ad aria Filtro aria a secco |
| Fuel tank capacity | 13 L |
| Gearbox | 4-wheel-drive hydrostatic transmission. |
| Clutch | Electromagnetic clutch with P.T.O and blade brake. |
| Differential locking | On the rear axle, with pedal engagement. |
| Cutter deck | rear discharge or mulching via “Quick Shift” lever. |
| Cutting configuration | 3 rotating blades. |
| Cutting width | 106 cm |
| Cutting height | Continuously adjustable from 2,5 to 10 cm via gas spring. |
| Peripheral blade speed | 83 m/1" |
| Front tyres | 16x6.50-8 |
| Rear tyres | 20x10.00-8 |
| Speed | Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h |
| Inner turning radius | 95 cm |
| Seat | Adjustable and with mechanical suspension. Equipped with roll-bar. |
| Parking brake | On the rear wheels with lever engagement. |
| Mowing capacity per hour (indicative) | 8500 m^2/h |
| Length | 206 cm |
| Width | 113 cm |
| Height | 118,5 cm |
| Distance between axles | 142 cm |
| Weight | 370 kg |
