The two-speed plus reverse gearbox is mechanical with oil-bath gears and the gear lever is always within reach.
The first gear is useful for breaking up the hard surface crusts and the second gear finely shreds the soil.

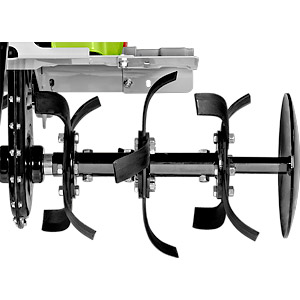

The tines are made of hardened steel are bolted together. The tiller shaft is hexagonal with a 27 mm hexagon.
The tiller drive housing is bolted on for maintenance purposes.

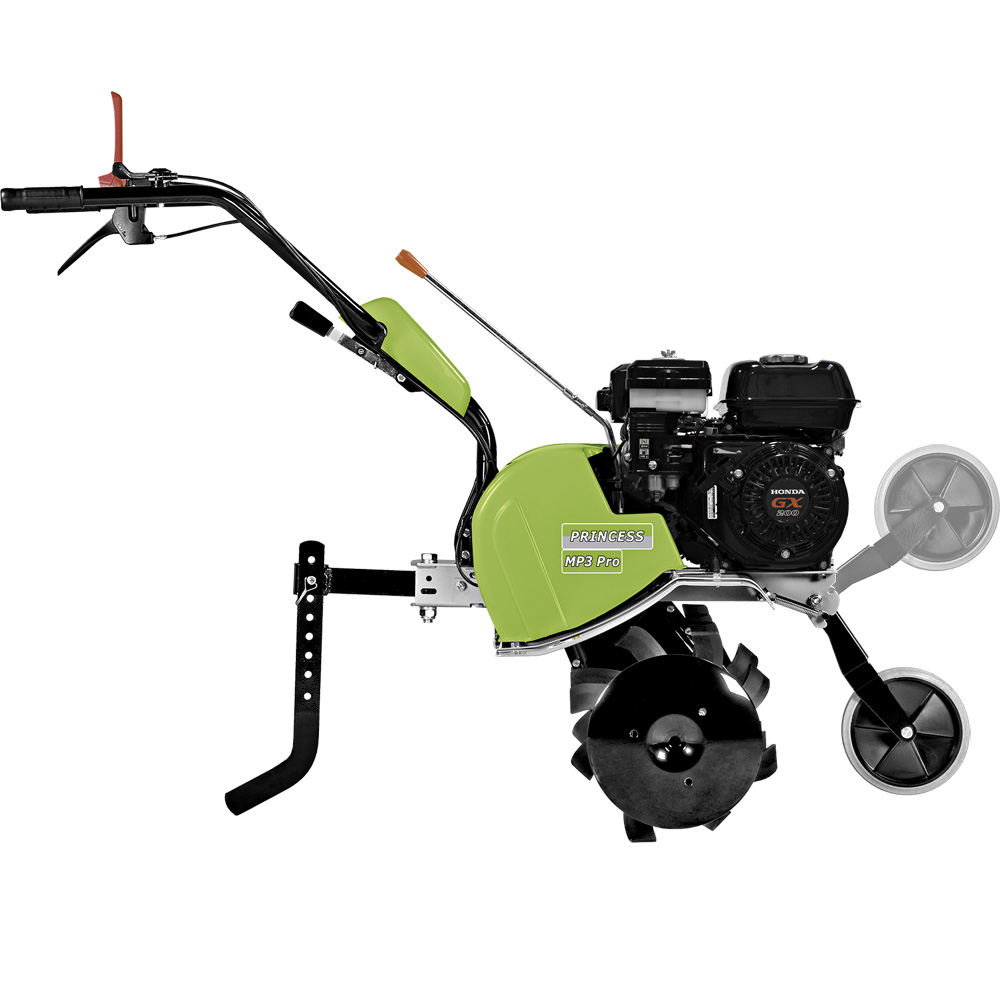

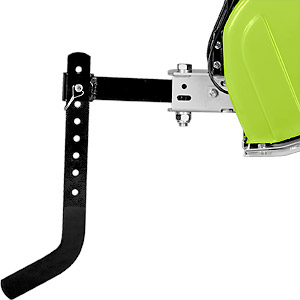

The height-adjustable spur with 8 positions is oscillating.

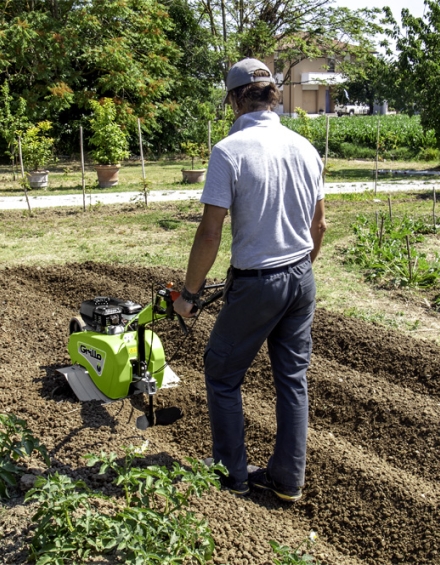

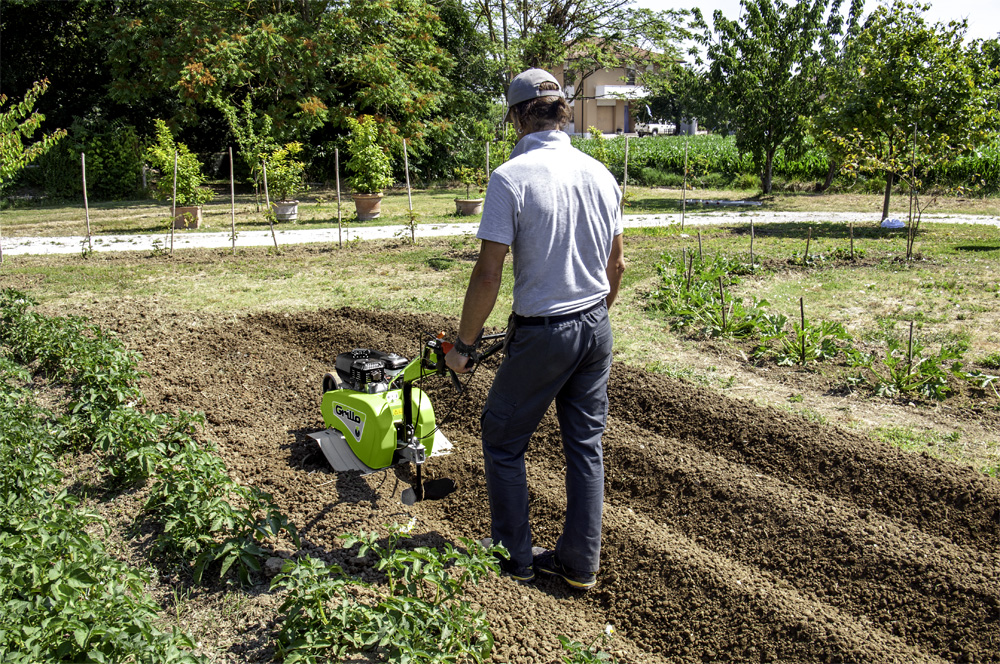

The furrower replaces the spur and allows perfect furrows of the desired depth to be made for seeding or irrigation.
Side discs should not be used when tilling hard soil that has never been tilled.
In softer soils, side discs become very useful: they help maintain direction, advance and protect nearby crops from tilling.

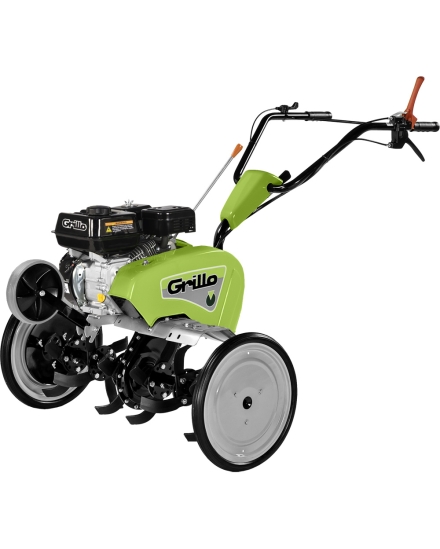

| Standard features | Front transfer wheel |
| Safety devices | When the user leaves the handlebars the machine stops. Mudguards and handlebars according to the law. Silencer protection. |
| Engine |
Loncin G200FA Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio Honda GX200 OHV Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 3,1 L mot. GX200 - 3 L mot. G200FA |
| Gearbox | 2 forward gears + reverse gear |
| Final drive | With pinion and chain |
| Clutch | With lever control on the handlebar working on the belt tensioner |

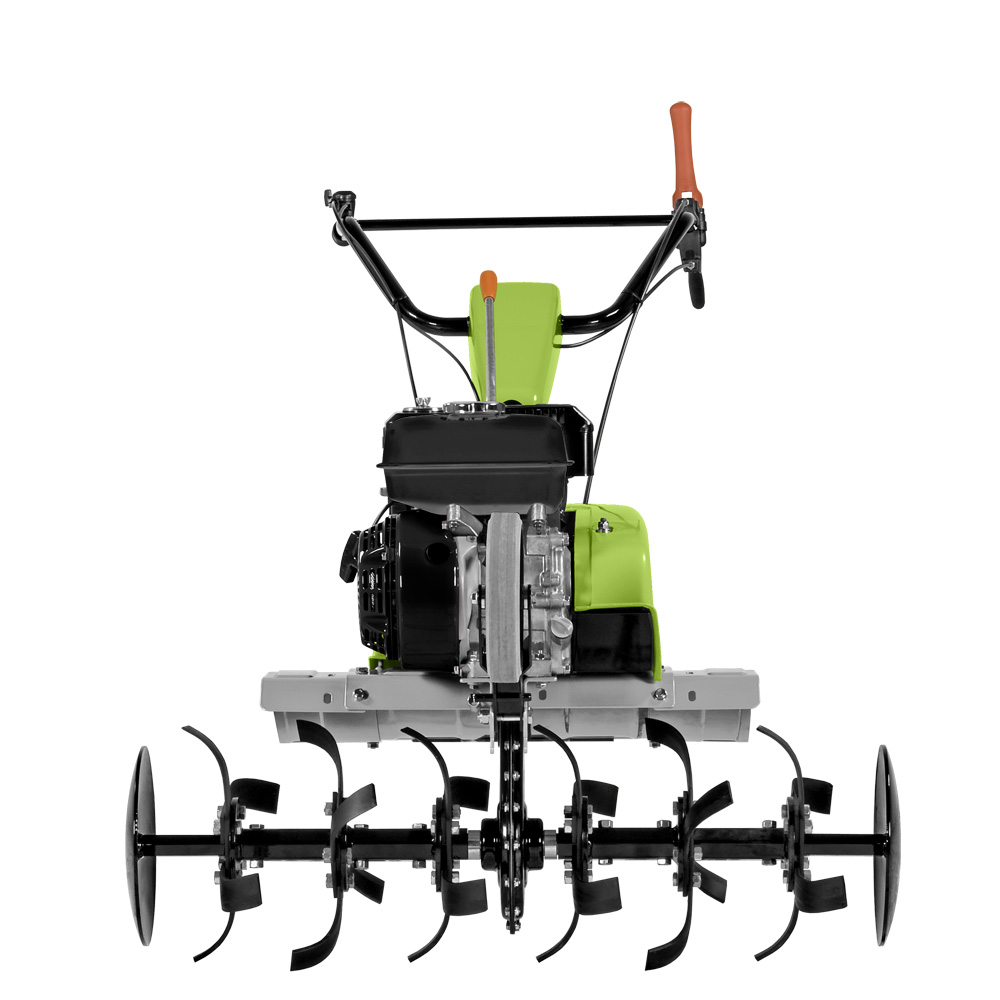

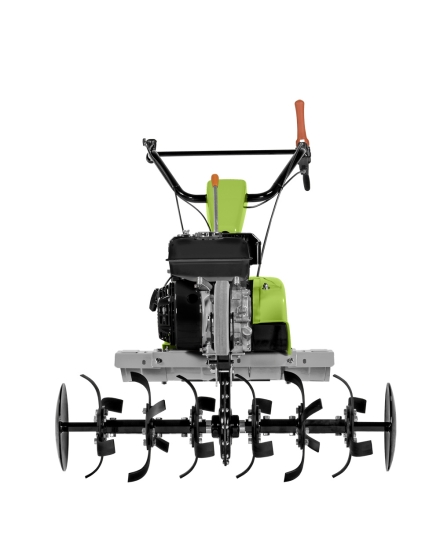

| Standard rotary tiller | With 6 tines and side discs, working width 97 cm. With hexagonal shaft 27 mm |
| Hoes system diametre | 33 cm |
| Working depth area without side disks | Adjustable at 82 and 56 cm |
| Working depth | 33 cm |
| Max. revolutions tiller | 1st gear 36 rpm – 2nd gear 160 rpm – reverse gear 36 rpm |
| Carter of the tiller | Bolted, pressed steel with screwed shells |

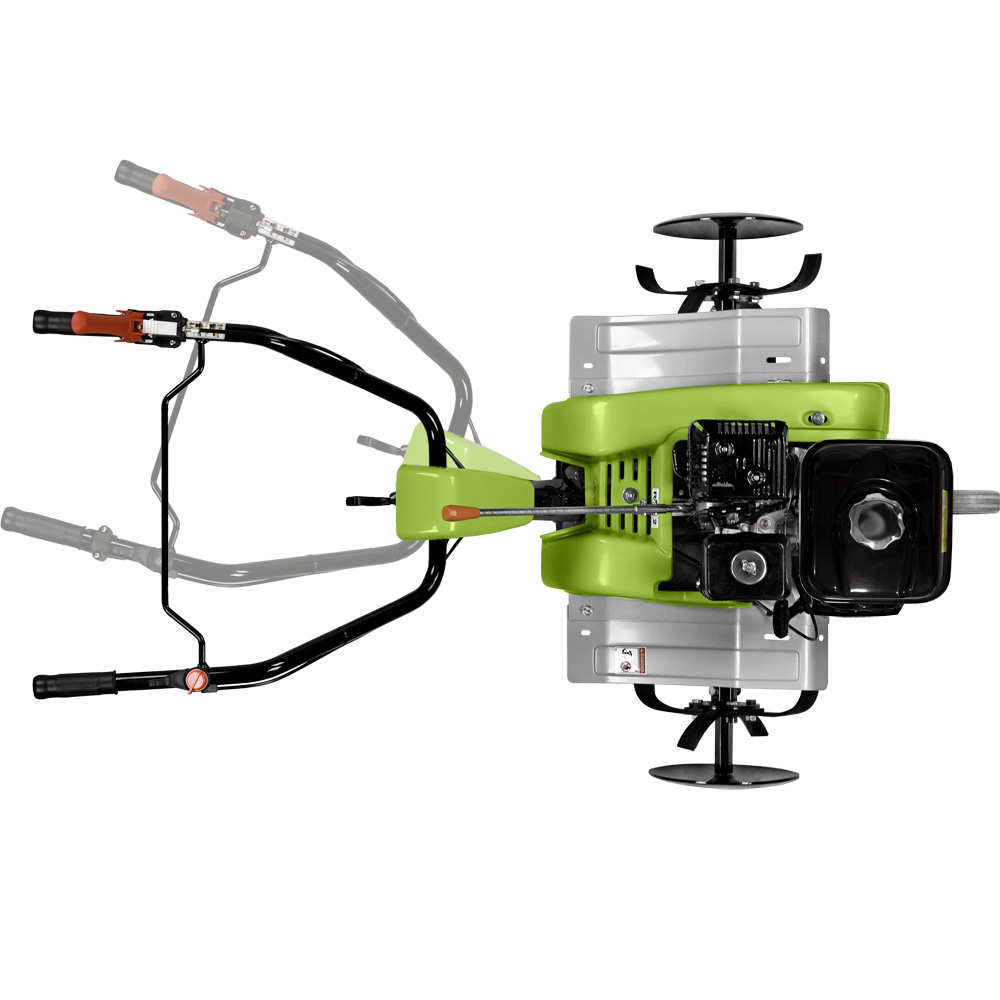

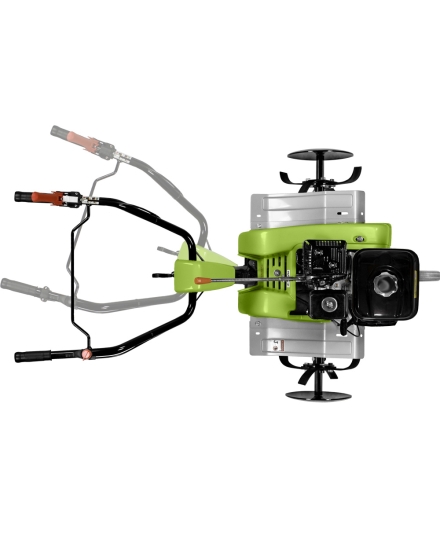

| Handlebar | Height and side adjustment |
| Weight | 66 kg (GX200); 68 kg (G200) |
